Bluetooth Wireless Wifi Module Pass Through Replace HC-05 HC-06

Product Description: Model: JDY-30 module = JDY-31 The same use.
Support Bluetooth SPP protocol, the transmission speed of up to dozens of K per second

Applications:

1: Bluetooth printer
2: Bluetooth POS machine
3: intelligent home control
4: Bluetooth wireless data transmission
JDY-30 manual download address: https: //pan.baidu.com/s/1jIBSbD8
Advantages: Replace all Bluetooth 3.0 and 2.0 serial communication modules on the market

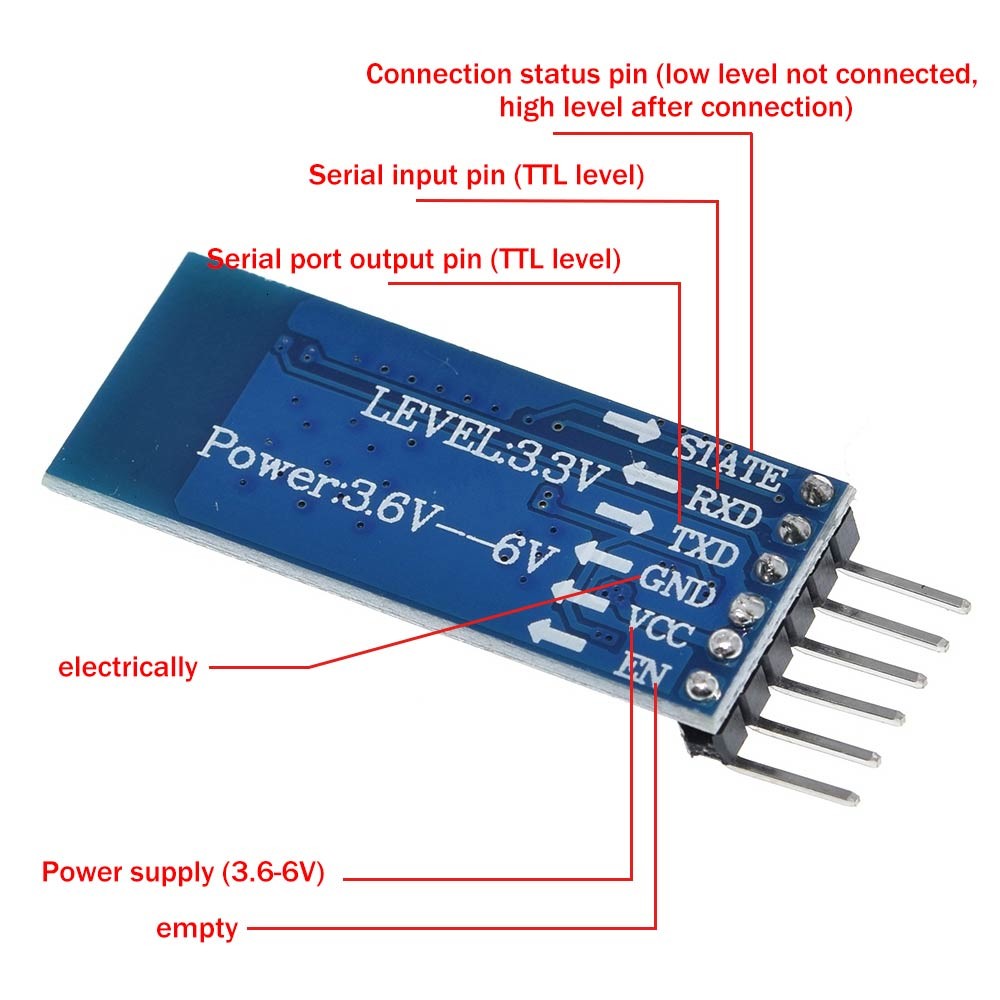

Input voltage with baseplate: 3.6V-6V(5v is good)

SMD input voltage without baseplate is 1.8V-3.6V

Features:

Bluetooth V3.0 + EDR

Bluetooth Class 2

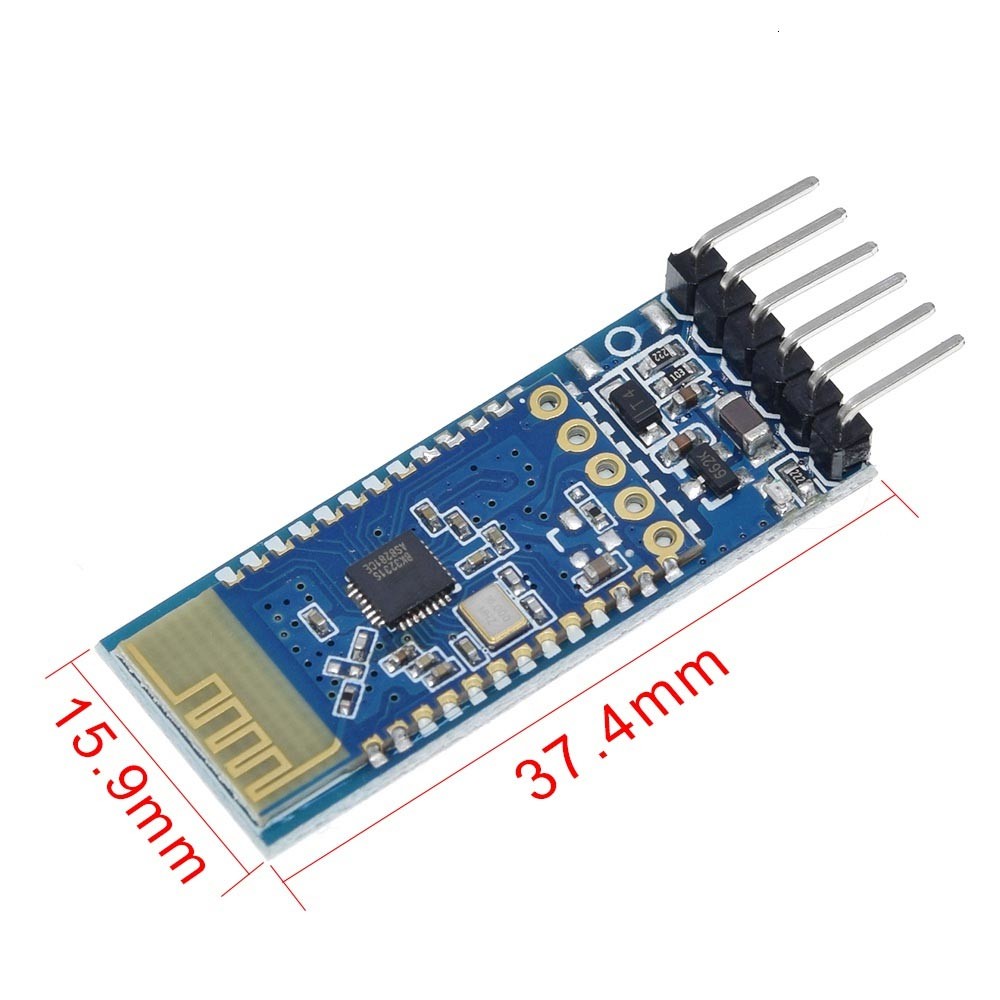

Built-in PCB radio frequency antenna

Support UART interface

3.3V power supply

Operating Frequency Band:2.4GHz -2.48GHz unlicensed ISM band

Bluetooth Specification: V2.1+EDR

Host Interface: UART
