DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch

Home > Products > Control Relay Module > DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch

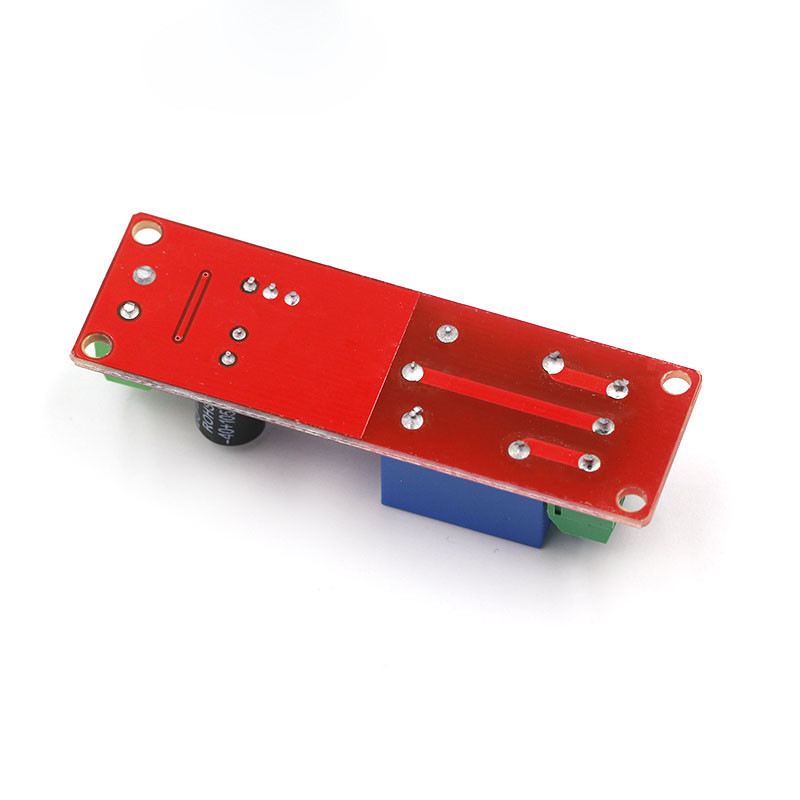

DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch
Part Number: DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch
Manufacturer:
Packing: Module
D/C: new+
Description: DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch
Quantity: 9999 Pieces
Delivery Time: 1-2 days
Data sheet:
If you need to get the correct price,Please send your RFQ to info@hfd-ic.com

Introduction

DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch  best price and fast delivery.
Hengfengda is the distributor for DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch by email, we will give you a best price according your plan.
Our email: info@hfd-ic.com

Specifications

PRODUCT DESCRIPTION

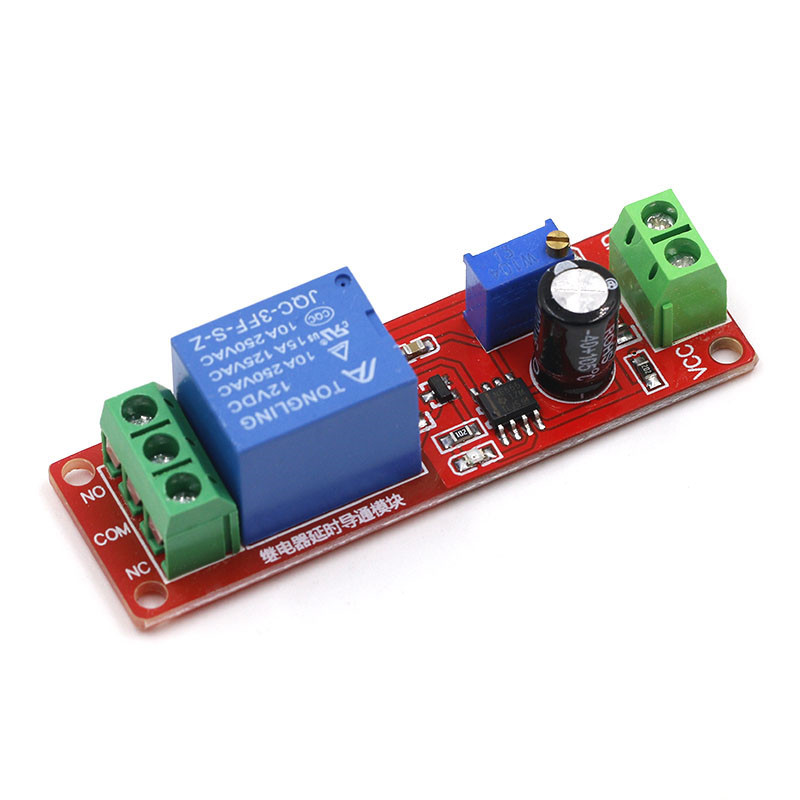

DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch Adjustable Controller Module NE555 power supply module

Product Description:

  • power relay delay pull. Specifically:12v power supply to the relay, the relay will not immediately sucked and status relay outputs are normally open disconnected public,normally closed and public conduction,wait until the delay 1-10s (adjustable),the relay suction and, this time, the relay output status is: normally open and public conduction,normally closed and public disconnected; as long as uninterruptible power module, this state will remain.
  • the delay time is adjustable(0 to 10 seconds)
  • increasing the potential can increase the delay time
  •  increasing the capacitor C1 can increase the delay time
  • with input power indicator
  • with relay indicator
  • can control AC 220V / 10A about equipment. (Maximum control equipment 2000W)
  • with freewheeling protection relay.
  • the delay time formula: T = 1.1RC. For example: a resistor capacitor 100uf 100K
  • T = 1.1 * 100000 * 0.0001 = 11 seconds
