PCB Board Control Relay Module 1 Way 12v Single Channel Relay

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Part Number:	PCB Board Control Relay Module 1 Way 12v Single Channel Relay
Manufacturer:
Packing:	Module
D/C:	new+
Description:	PCB Board Control Relay Module 1 Way 12v Single Channel Relay
Quantity:	9999 Pieces
Delivery Time:	1-2 days
Data sheet:

If you need to get the correct price,Please send your RFQ to info@hfd-ic.com

Introduction

PCB Board Control Relay Module 1 Way 12v Single Channel Relay best price and fast delivery.

Hengfengda is the distributor for PCB Board Control Relay Module 1 Way 12v Single Channel Relay, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for PCB Board Control Relay Module 1 Way 12v Single Channel Relay by email, we will give you a best price according your plan.
Our email: info@hfd-ic.com

Specifications

PRODUCT DESCRIPTION

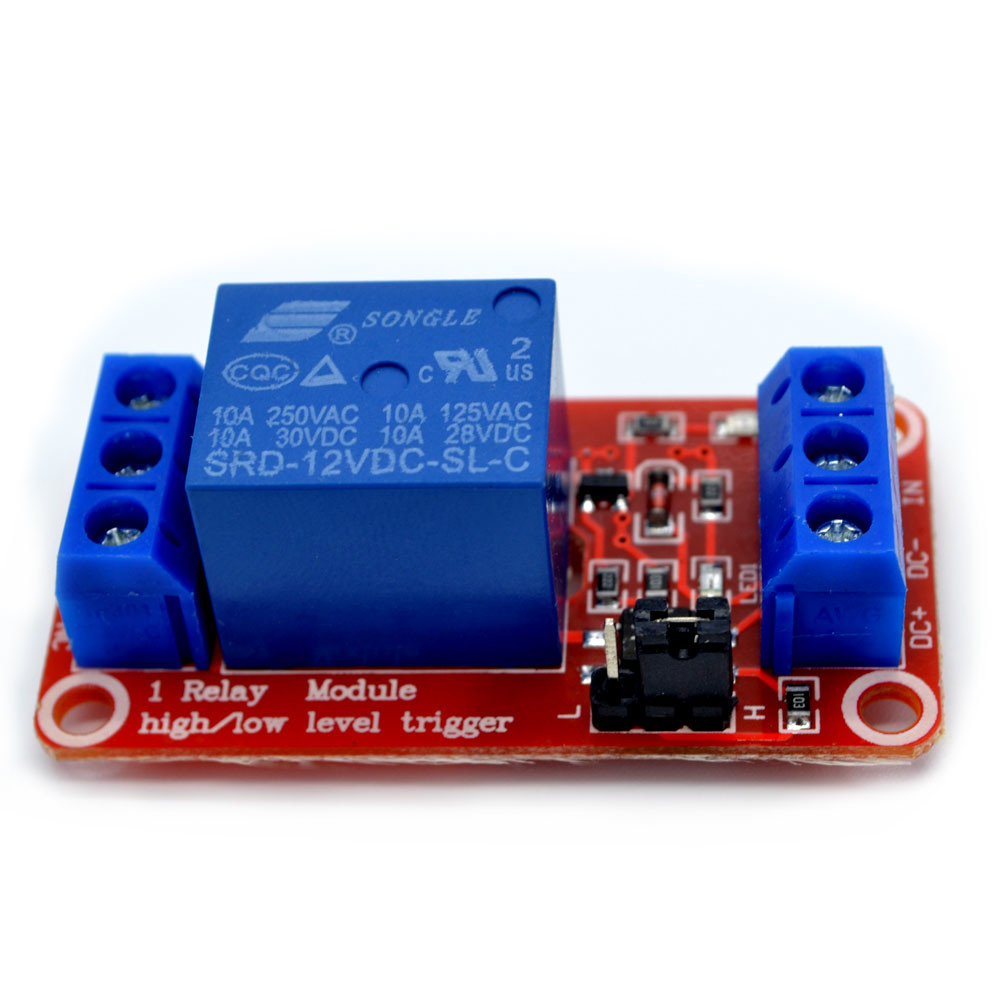

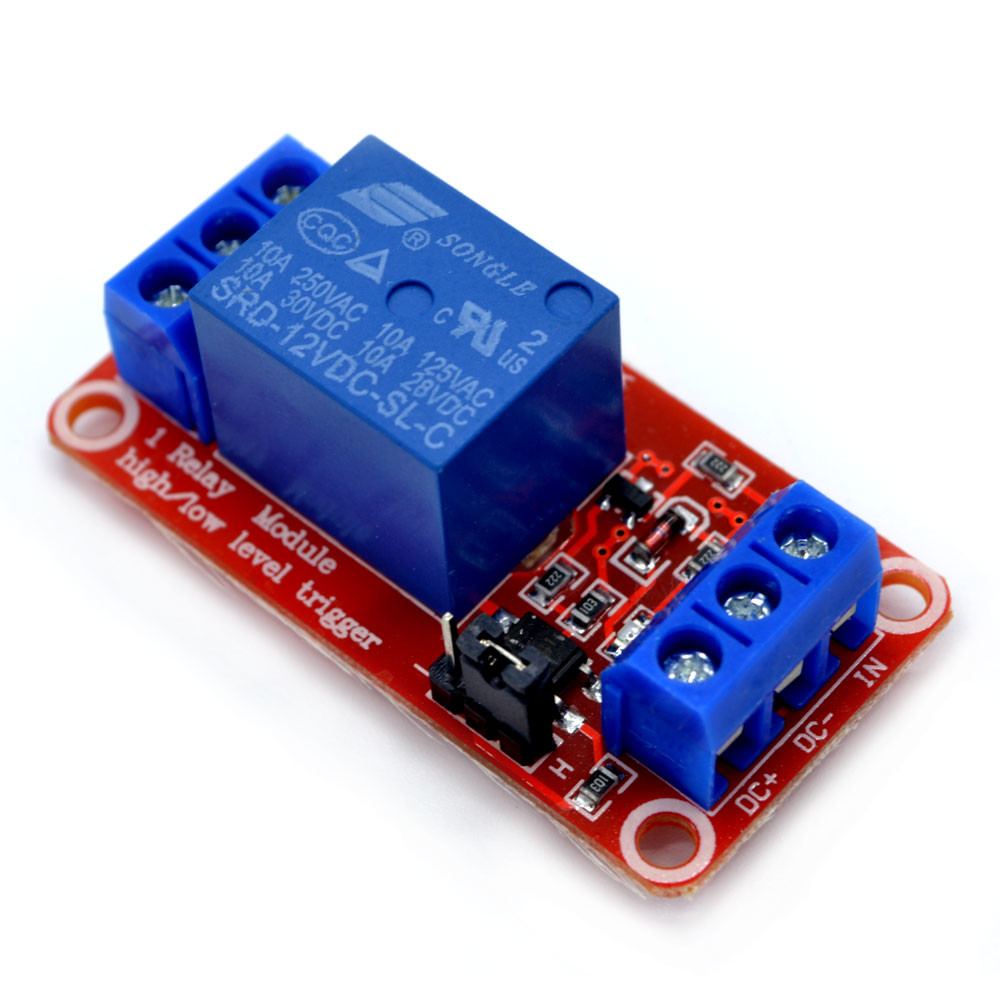

12V 1 Way Relay Red PCB Board High and Low level Trigger With Optocoupler Isolation 1 Channel Relay Module power supply module

Product Description:

Size: 5cm*2.6cm*1.8cm(L*W*H)
Pole Number: 1 Channel
Operating Voltage: 12V
DC+: positive power supply
DC-: negative power supply
Quiescent Current: 5mA
Maximum Current: 80mA
Trigger Voltage: 0V-4V(Low level) 4.5V-12V(High level)
Trigger Current: 2-4mA
Maximum Load: AC250V/10A, DC30V/10A
Four Position Hole: 3.1mm(diameter)

Package Included:

1 x 12V 1Channel Relay Module High and Low level trigger with Optocoupler Isolation
