Smart Electronics MQ8 Methane Sensor Arduino For Arduino Diy Starter Kit

Home > Products > Smart Sensor Module > Smart Electronics MQ8 Methane Sensor Arduino For Arduino Diy Starter Kit
Smart Electronics MQ8 Methane Sensor Arduino For Arduino Diy Starter Kit

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Smart Electronics MQ8 Methane Sensor Arduino For Arduino Diy Starter Kit
Part Number: Smart Electronics MQ8 Methane Sensor Arduino For Arduino Diy Starter Kit
Manufacturer:
Packing:
D/C: new+
Description: Smart Electronics MQ8 Methane Sensor Arduino For Arduino Diy Starter Kit
Quantity: 9999 Pieces
Delivery Time: 1-2 days
Data sheet:
If you need to get the correct price,Please send your RFQ to info@hfd-ic.com

Introduction

Smart Electronics MQ8 Methane Sensor Arduino For Arduino Diy Starter Kit  best price and fast delivery.
Hengfengda is the distributor for Smart Electronics MQ8 Methane Sensor Arduino For Arduino Diy Starter Kit, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for Smart Electronics MQ8 Methane Sensor Arduino For Arduino Diy Starter Kit by email, we will give you a best price according your plan.
Our email: info@hfd-ic.com

Specifications

PRODUCT DESCRIPTION

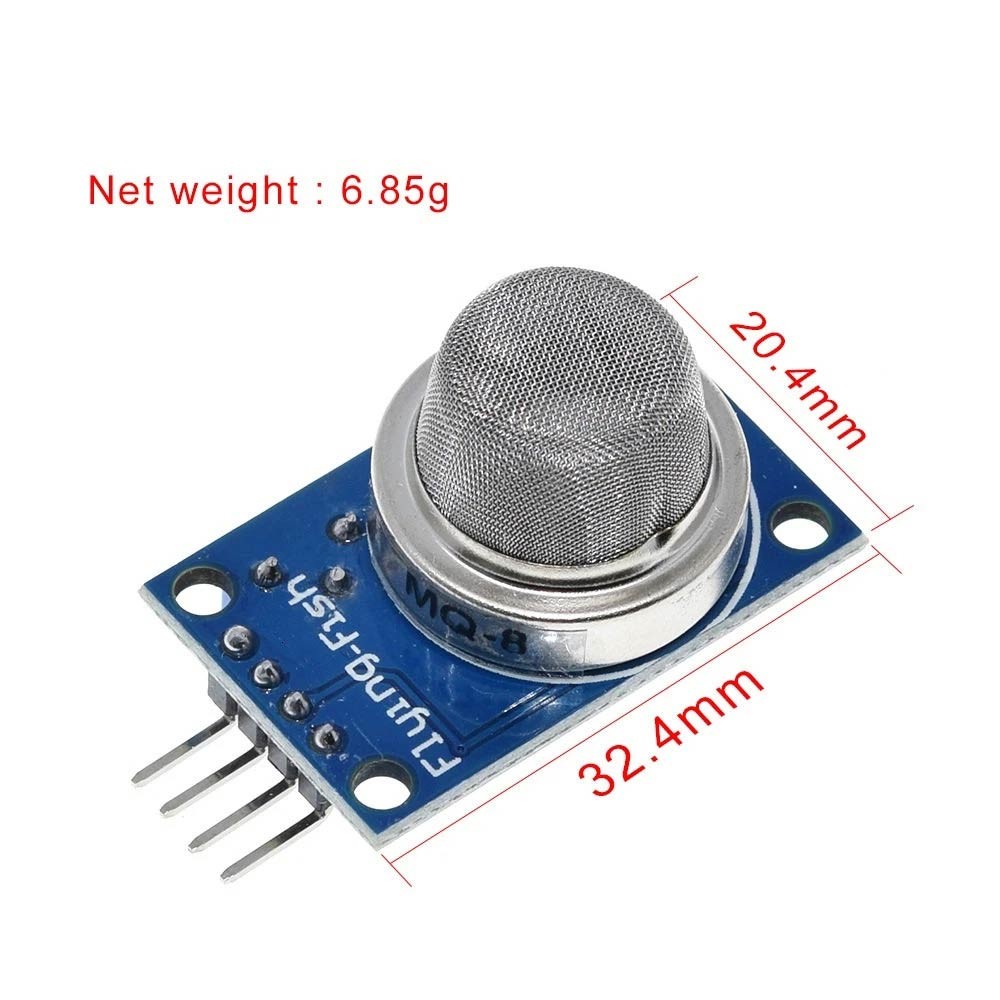

Smart Electronics MQ8 MQ 8 MQ-8 Smoke Liquefied Flammable Methane Gas Sensor Module for Arduino Diy Starter Kit

Product Overview:

Sensitive material MQ-8 gas sensors used in clean air, low conductivity tin oxide (SnO2). When there is an environment in which the combustible gas sensor, conductivity sensor with increasing concentration of combustible gases in air increases. Use simple circuit can convert the change in conductivity of the gas concentration corresponding to the output signal. MQ-8 hydrogen gas sensor of high sensitivity monitoring of other hydrogen-containing gas is also very good. The sensor can detect a variety of hydrogen-containing gas, in particular, city gas, is a low-cost sensor suitable for a variety of applications.

Application:


Suitable for home or industrial hydrogen leak monitoring devices. Can not interfere with ethanol vapor, soot, carbon monoxide and other gases.

Features:
Using high-quality dual-panel design,with power indicator and TTL signal output instructions.
The switching signal having a DO (TTL) output and analog output AO.
TTL output valid signal is low. ( Low-level signal when the output light can be directly connected to the microcontroller or relay module )
Analog output voltage with the higher concentration of higher voltage
There are four screw holes for easy positioning.
Has a long life and reliable stability
Rapid response and recovery characteristic

Input voltage : DC5V Power consumption ( current ): 150mA
DO output : TTL digital 0 and 1 ( 0.1 and 5V)
AO output :0.1-0 .3 V ( relative to pollution ),the maximum concentration of a voltage of about 4V
Special note: After the sensor is powered,needs to warm up around 20S,measured data was stable,heat sensor is a normal phenomenon,because the internal heating wire,if hot is not normal .

Wiring:

  •
  • VCC: positive power supply (5V)
  • GND: power supply is negative
  • DO: TTL switching signal output
  • AO: analog signal output
  •

  • NOTE:

    After the sensor is powered, need to warm about 20S, measured data becomes stable, heat sensor is normal
