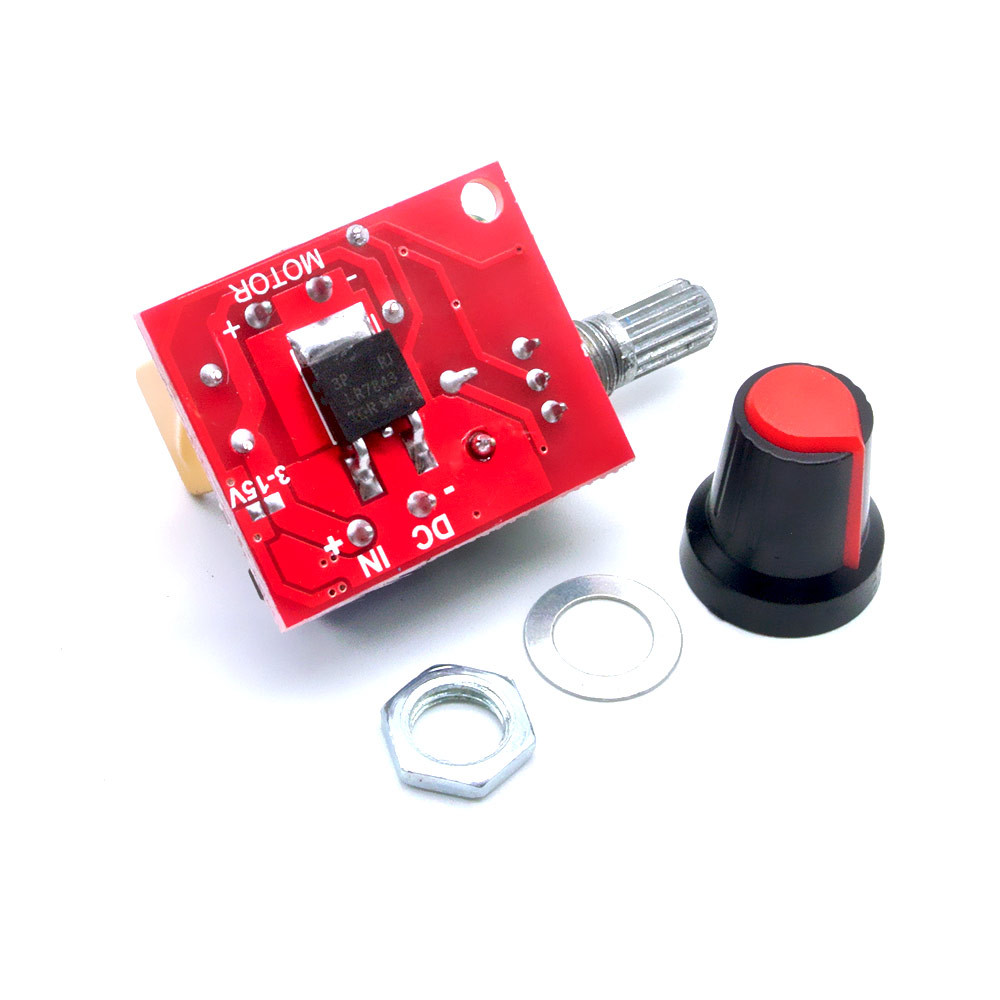

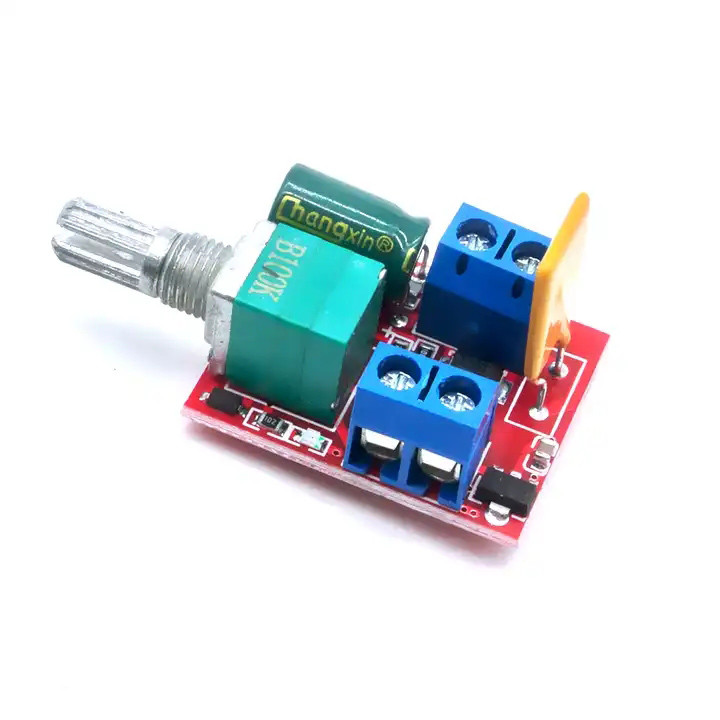

35V 5A 90W PWM Motor Speed Controller Adjust Board Switch For LED Dimming

100% brand new and high quality.
Mini wide voltage DC motor governor adopts the latest low voltage drive technology, the current is up to 5A, the smallest volume is only 1 yuan coin size, the applicable voltage is the widest 3-35V, and it is equipped with self-recovery fuse, pocket DC governor, Also suitable for LED dimming.
With high voltage and high current self-recovery fuse, the current is automatically disconnected, the fuse is automatically restored after a few seconds of power-off cooling, almost never need to change the fuse.
Input voltage selection is divided into two gear positions. By default, the short-circuit point is applied to the voltage of 5-35V input. If the short-circuit point is connected, the low-voltage 3-15V input is applied.
The default is to disconnect the short-circuit point and apply the voltage to 5-35V input. Low voltage input gear can be changed by yourself.

Specification:
New and high quality
Working voltage: DC3V-35V
Control power: 90W (maximum)
Quiescent current: 0.015A (standby state)
PWM duty cycle: 1% - 100%
PWM frequency: 10 khz
Model: ZS-X4A
Housing size: 30MM * 24MM wide (excluding handle), total height: 15MM
Color: as shown in the figure
Package Included:1PCS

Note:
Please refer to the measurement. Tiny measuring error is allowable in normal range.
As different computers display different colors, thank you for your understanding, the actual product color may be slightly
different from the image.
