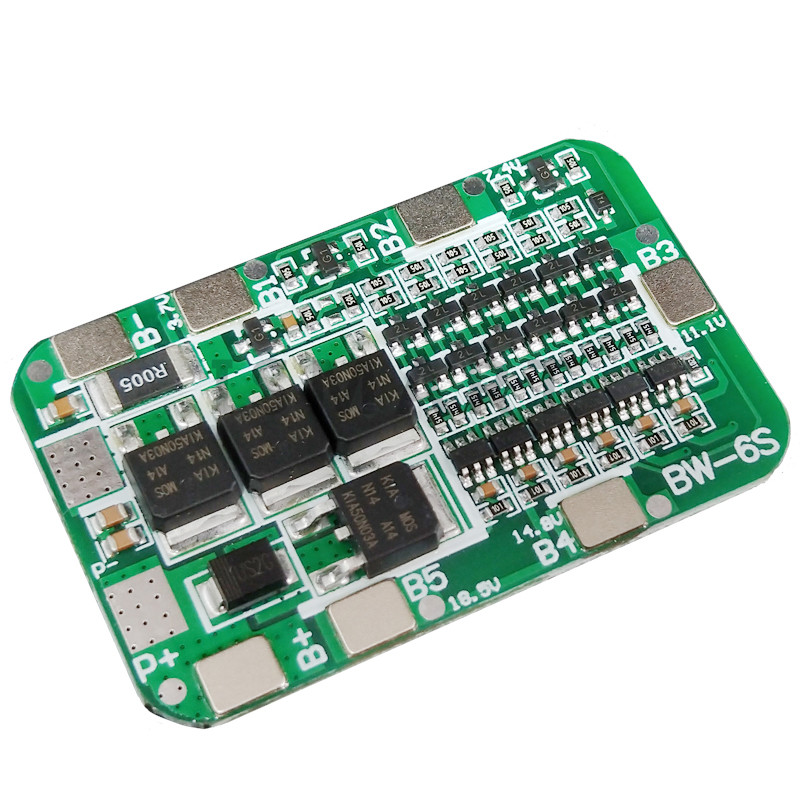

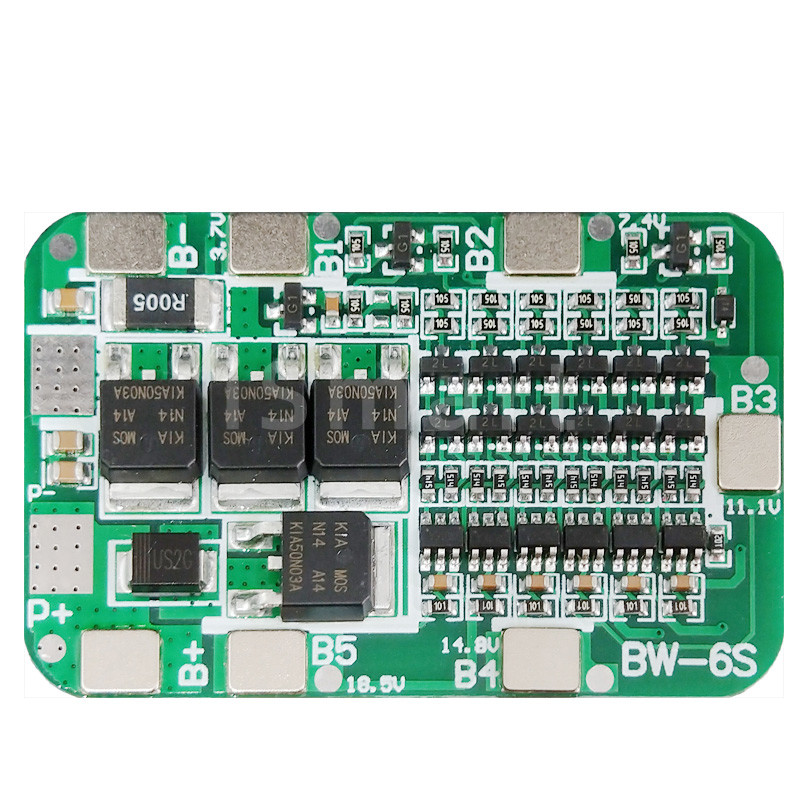

6S 12A 24V PCB BMS Protection Board For 6 Pack 18650 Li ion Lithium Battery Module

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Part Number:	6S 12A 24V PCB BMS Protection Board For 6 Pack 18650 Li ion Lithium Battery Module
Manufacturer:
Packing:
D/C:	new+
Description:	6S 12A 24V PCB BMS Protection Board For 6 Pack 18650 Li ion Lithium Battery Module
Quantity:	9999 Pieces
Delivery Time:	1-2 days
Data sheet:

If you need to get the correct price,Please send your RFQ to info@hfd-ic.com

Introduction

6S 12A 24V PCB BMS Protection Board For 6 Pack 18650 Li ion Lithium Battery Module best price and fast delivery.

Hengfengda is the distributor for 6S 12A 24V PCB BMS Protection Board For 6 Pack 18650 Li ion Lithium Battery Module, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for 6S 12A 24V PCB BMS Protection Board For 6 Pack 18650 Li ion Lithium Battery Module by email, we will give you a best price according your plan.
Our email: info@hfd-ic.com

Specifications

PRODUCT DESCRIPTION

6S 12A 24V PCB BMS Protection Board For 6 Pack 18650 Li-ion Lithium Battery Module

Product Description:

Specifications:

Size: approx.50*30*2mm
Lampshift maximum discharge current: 12A
Instantaneous discharge current: 25A
Charging voltage: 25.5V
Charging current: 15A (MAX)
Overcharge detection voltage: 4.28 ± 0.05V
Overcharge protection delay: 0.1S
Overcharge release voltage: 4.08 ± 0.05V
Over discharge detection voltage: 2.55 ± 0.08V
Overdischarge detection delay: 0.1S
The overdischarge release voltage: 2.9 ± 0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 9MS
Overcurrent protection current: 30 ± 3A
Overcurrent protection release condition: Disconnect the load
Short circuit detection delay: 250uS
Short circuit protection Release condition: disconnect negative open
Main circuit conduction resistance: ≤20mΩ
Working current: ≤30uA
Sleep current (battery over discharge) ≤10uA
Temperature range: -30 / + 80 °

Features:

Fine workmanship and durable.
For the rechargeable (generally refers to the lithium battery) from the protection of the integrated circuit board. Lithium
battery (rechargeable type) so need protection.
As the lithium battery itself determines the material itself can not be overcharge, over discharge, overcurrent, short circuit and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow a protective resistor with a sampling resistor and a current fuse.

Note:

Please allow 1-5mm errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
