| Part Number: | MP3 Decoder 80W Bluetooth Audio Module DC 5V-26V ICCS8673E |
| Manufacturer: | |
| Packing: | Module |
| D/C: | new+ |
| Description: | MP3 Decoder 80W Bluetooth Audio Module DC 5V-26V ICCS8673E |
| Quantity: | 9999 Pieces |
| Delivery Time: | 1-2 days |
| Data sheet: |

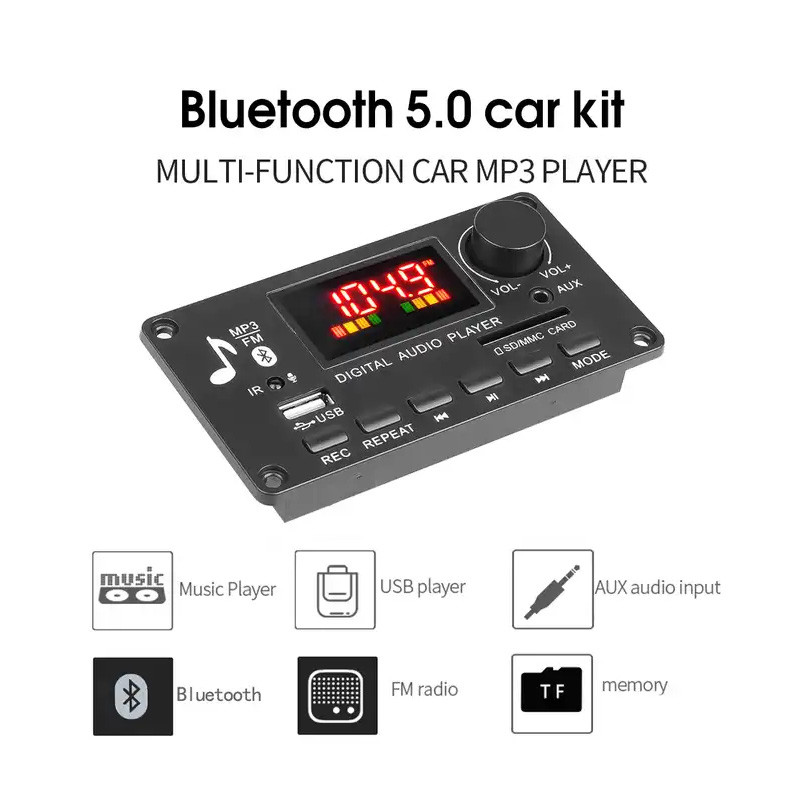

PRODUCT DESCRIPTION Bluetooth MP3 Decoder 80W Amplifier Wireless Car Music Player FM Radio DC 5V-26VProduct Description:

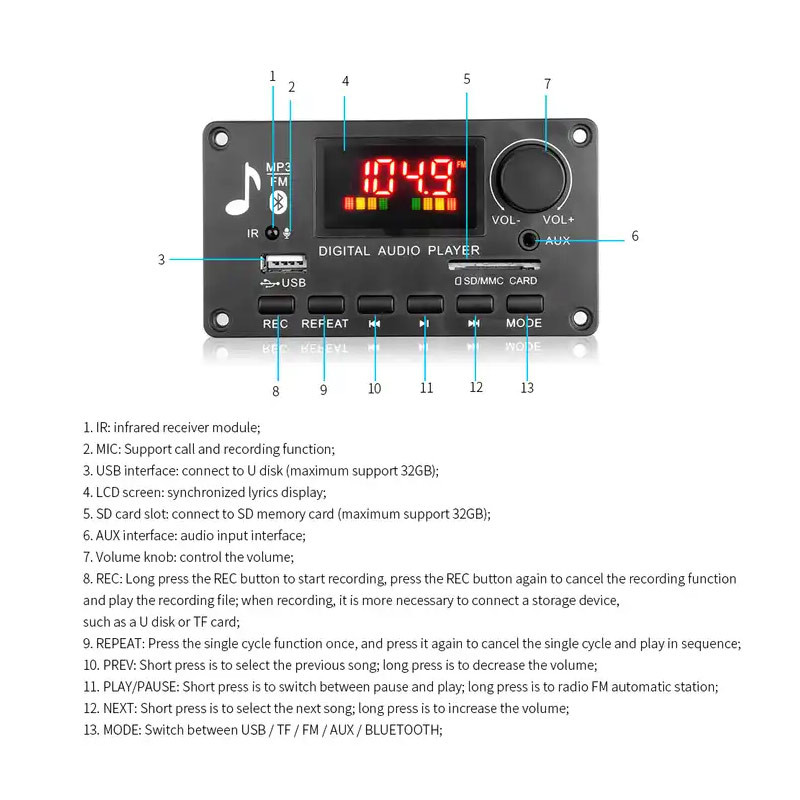

Bluetooth version 5.0 Power amplifier ICCS8673E, power: 2*40W (80W requires voltage value: DC25V) Bluetooth calling functionrecording functionMusic format: MP3/WMA/WAV/FLAC/APE lossless format music Radio FM frequency: 87.5—107.5 MHZ Folder switching functionSupport function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 5V-26V About the structure: Panel size: length 112 * width 62MM, the panel is surrounded by screw holes, the depth of the panel is 22MM 1. Description of recording function 1. Long press the MODE button to start recording, long press the MODE button again to cancel the recording function and play the recorded file; 2. When recording, it is necessary to connect a storage device, such as: U disk or TF card;Under the storage device, such as Udisk or TF card, long press the PLAY/PAUSE button (play/pause) to enter the recording folder and play the recording file; |
