Product Description:
Features:
1. The noise of the switch is small and will not have too much impact on the speaker. It is recommended to add a horn protection
circuit. The horn protection circuit can not only eliminate the impact noise of the power amplifier switch machine, but also avoid
the output DC burning the horn when the power amplifier is damaged.
2. The bottom noise is small. Zero floating small, do not need to do any debugging after installation, the output zero drift
voltage will generally not exceed 50mv, and is relatively stable.
3. Free debugging. As long as the connection is correct, no one is wrong, basically it is a success, no need to do any debugging,
beginners also have a very high success rate.
Features:
- Note:

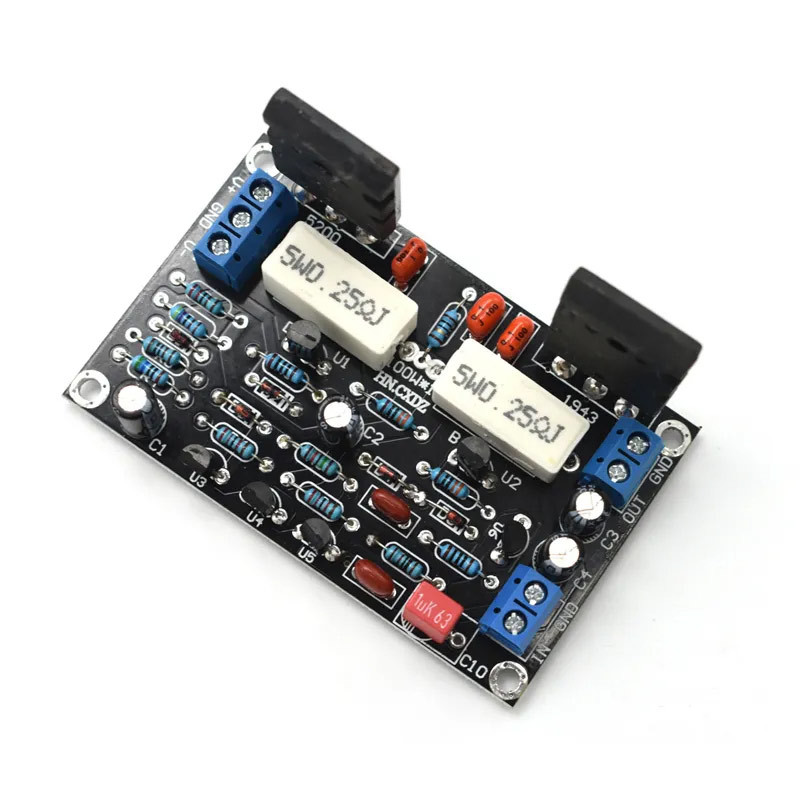

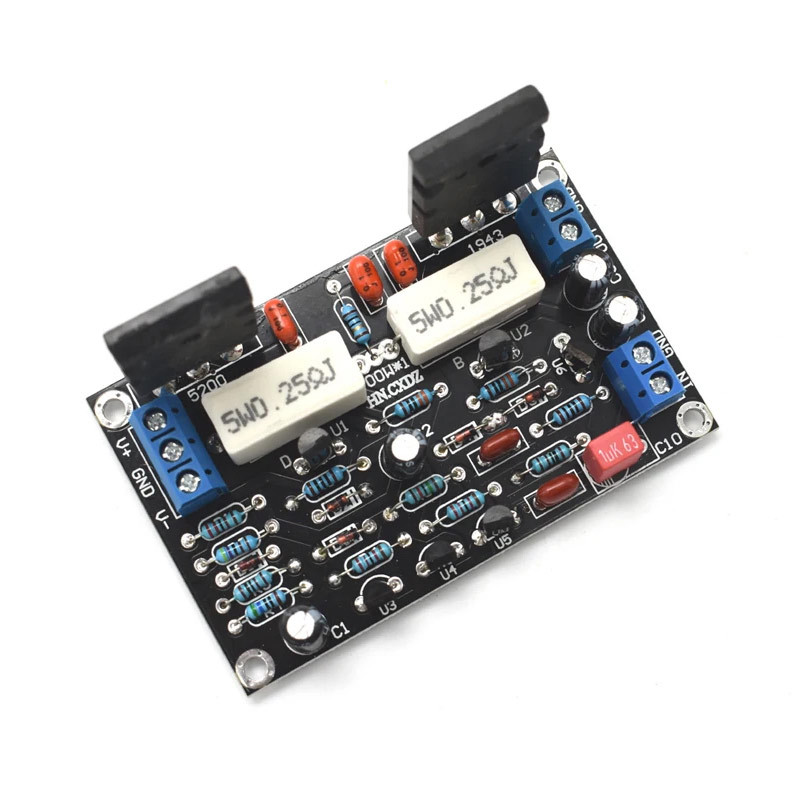

1.2SC5200 + ZSA1943 are disassemble parts,but in good condition.

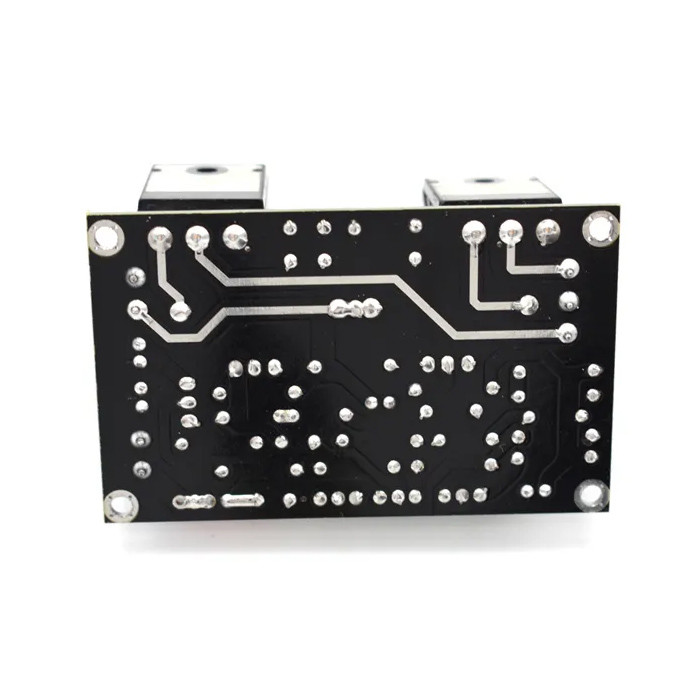

2.The PCB board has change to black, but the function is same.
2SC5200 + ZSA1943 are disassemble parts,but in good condition.
Operating voltage: Dual DC 10 - 45V recommended Dual DC 35V
Rated output power: 100W(4 Ohm ± 35V)
Maximum output power: 150W (4 Ohm ± 45V) enormous heat, is not recommended
PCB size: 80 x 50 x 35mm
Pitch: 5.08mm
Hole distance between two power tube: 47mm
Packing and Shipping:
Packaging and Shipping
The Amplifier Audio Module is shipped in a secure and durable packaging in order to ensure its safety during transportation. The package is designed to protect the product from external damage and shock.
Packaging materials include: cardboard box, foam, bubble wrap, and plastic wrapping.
The product is shipped via ground or air, depending on the customer’s preference. Shipping costs are calculated based on weight and distance.
