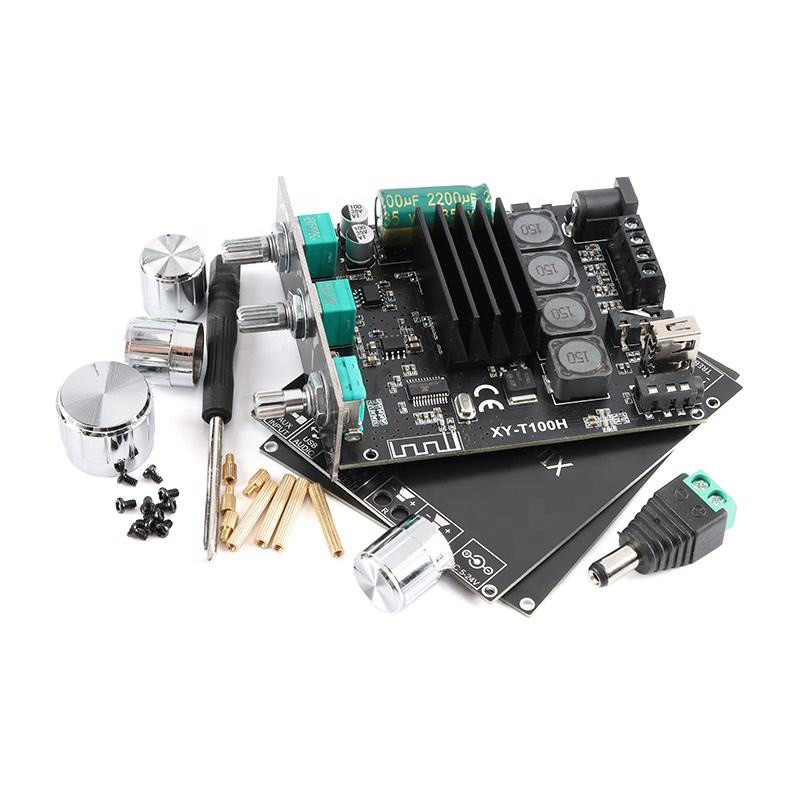

XY-T100H Bluetooth Audio Amplifier Board 100WX2 Ble 5.0 TPA3116D2 Stereo Digital Power

The T100H TPA3116D2 offers a great sound experience for your home or studio. This 100W+100W high and bass adjustable stereo bluetooth power amplifier board has impressive features such as:

• Power supply: DC5-24V/10A
• Bluetooth version: 5.0
• Audio input: Bluetooth+AUX+U disk+USB sound card
• Audio output: passive speaker + 3.5mm interface stereo output
• Volume adjustment: high-end encoder knob adjustment, smooth feel
• Frequency range: 20Hz-30KHz
• Signal-to-noise ratio: 92dB

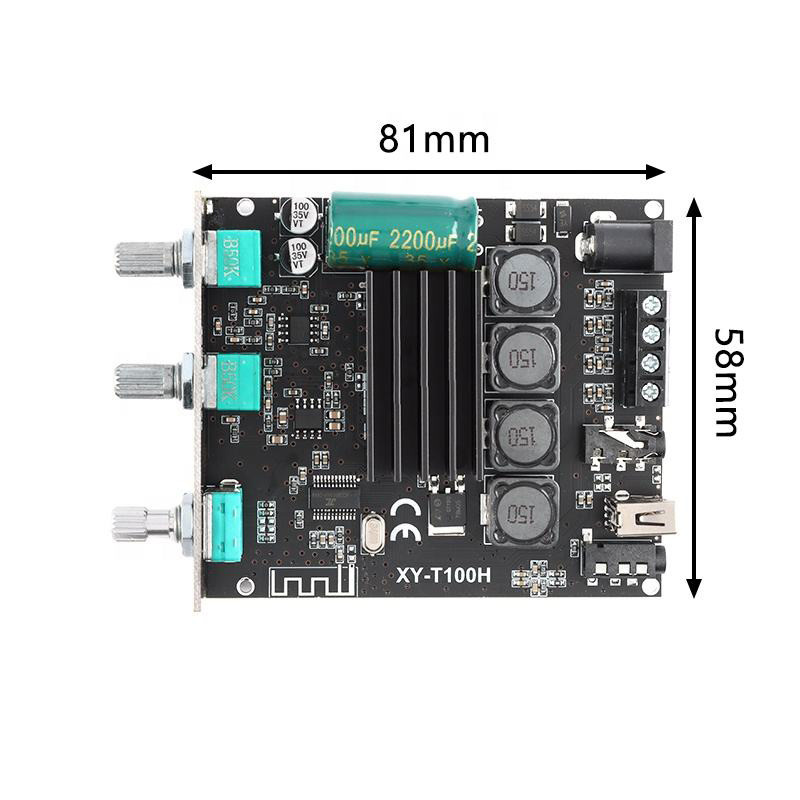

In addition, this board also supports an adaptor speaker of 20W-200W/4Ω-8Ω and an output power of 100W*2. It’s also equipped with built-in protection mechanisms such as electrostatic protection, overheating protection, overcurrent protection, and short circuit protection. Lastly, it offers its unique Sinilink-APP control function, and its product size and weight are 93mm*65mm*25mm and 107g respectively.
