Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

CA-3116

Part Number:	CA-3116
Manufacturer:
Packing:	Module
D/C:	new+
Description:	CA-3116 Amplifier Audio Module Digital Power Amplifier Board 50W
Quantity:	9999 Pieces
Delivery Time:	1-2 days
Data sheet:

If you need to get the correct price,Please send your RFQ to info@hfd-ic.com

Introduction

CA-3116 best price and fast delivery.

Hengfengda is the distributor for CA-3116, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for CA-3116 by email, we will give you a best price according your plan.
Our email: info@hfd-ic.com

Specifications

PRODUCT DESCRIPTION

CA-3116 digital power amplifier board 50W+50W DC 5V 12V 24V dual channel audio stereo module

Product Description:

CA-3116 is a 50W*2 Dual Channel Stereo Digital Power Amplifier Board.
It has a built-in amplifier module that can be connected directly to the speaker.

Features:

Ultra small volume
No POP noise
Low power consumption
High gain
Support output short circuit protection

Parameters:

Item name: 50W*2 Dual Channel Stereo Digital Power Amplifier
Model:CA-3116
Work voltage:DC 4.5V~24V
Quiescent Current:28mA
Chip type:TDA3116D2
Work frequency:20Hz~20KHz
Work type: Class D(PWM modulation)
Input resistance:1Kohm
Output resistance:4~8ohm
Gain:36dB
Noise ratio:102dB
Harmonic distortion:<1%
Operating Temperature:-20℃~85℃
Operating Humidity:5%~95%RH

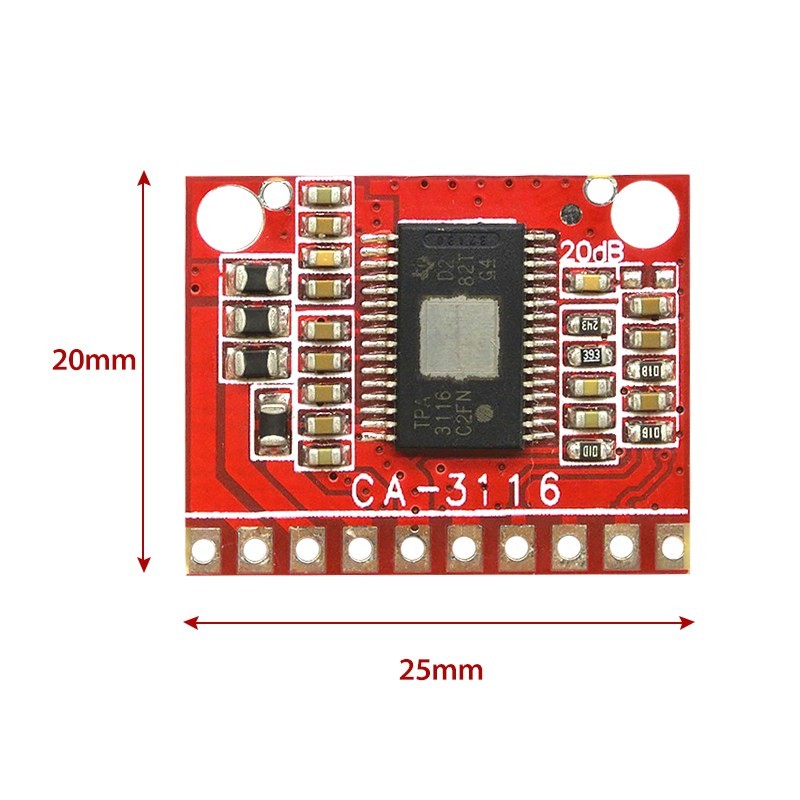

Module Size:25*20*2mm
