TPA3116

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

TPA3116

Part Number:	TPA3116
Manufacturer:
Packing:	Module
D/C:	new+
Description:	Dual Channel Digital Amplifier Audio Module
Quantity:	9999 Pieces
Delivery Time:	1-2 days
Data sheet:

If you need to get the correct price,Please send your RFQ to info@hfd-ic.com

Introduction

TPA3116 best price and fast delivery.

Hengfengda is the distributor for TPA3116, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for TPA3116 by email, we will give you a best price according your plan.
Our email: info@hfd-ic.com

Specifications

PRODUCT DESCRIPTION

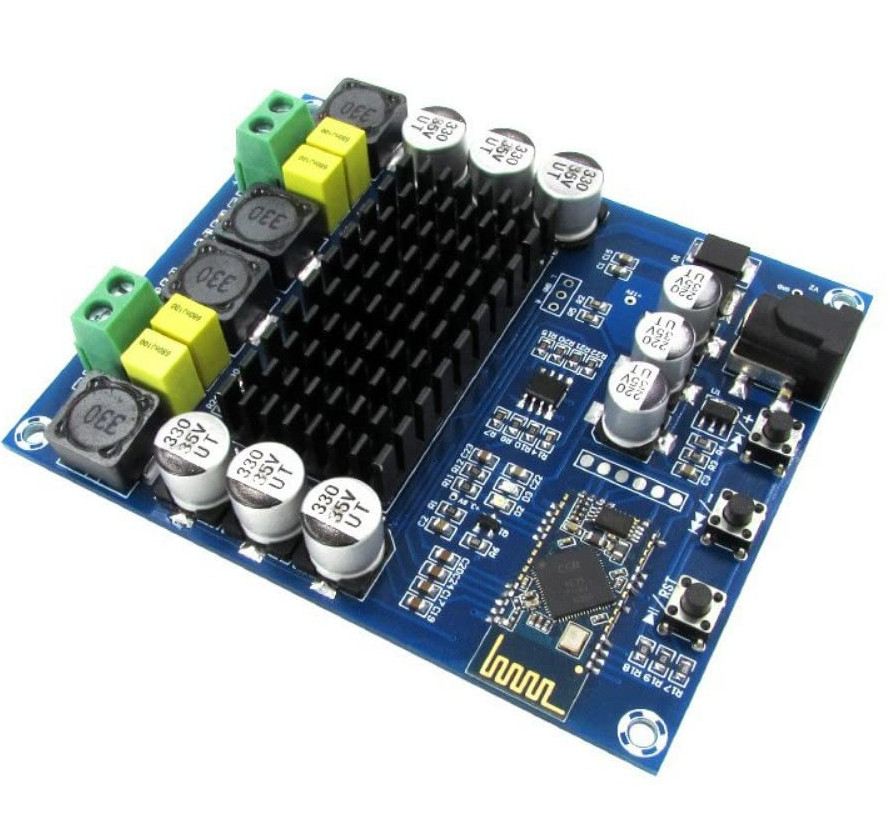

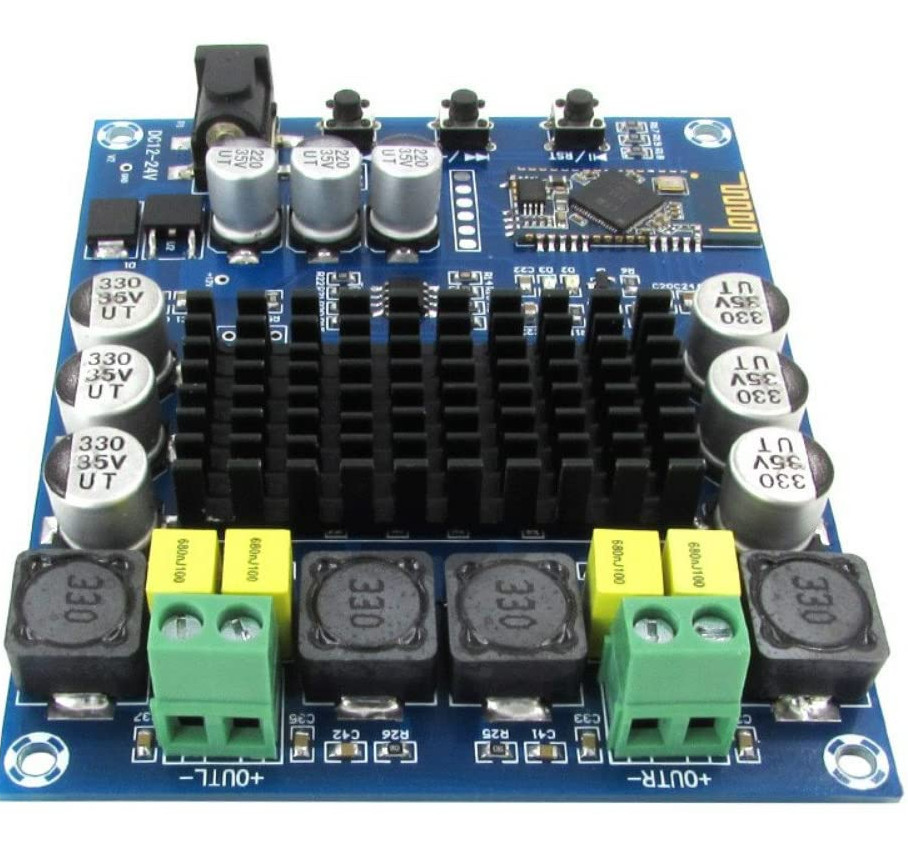

Dual Channel TPA3116 CSR8635 4.0 BT Digital Audio Amplifier module 100w*2

Product Description:

Chip type:TDA3116
Transmission distance:up to 10 meters (no interference blocking)
Supply voltage:DC12-24V
Supply current:greater than 3A
Output power:100W * 2
Notice:Dual Channel Output 4Ohm 50W*2
Power interface:2.1 DC socket
Applicable speaker impedance:4-8ohm
Single Channel Output:4Ohm 80W ; 3Ohm 110W; 2Ohm 100W

Main Board: tpa3116 amplifier board

Function:

Using the digital power amplifier chip TPA3116D2 college D class operation, integrated CSR8635.4 version of the BT module.
Power amplifier chip with more than 90% of the power efficiency and low idle loss characteristics.
High-level modulation system configuration, advanced level reduces the number of components, integrated self-protection circuit,including overvoltage, undervoltage, overheating, DC detection and short circuit protection, heat-resistant package.BT transmission of about 10 meters,But only if there is without any hindrance,but the use of the environment do not,transmission distance, if the DIY speaker, it is best not to use the BT signal shielding material
Output power:100W*2;BT 4.0,Low energy consumption, high transmission rate,compatible for smart phones and other electronic
with BT devices that support BT: HFP V1.6,HSP V 1.2, AVRCP V1.4, DI V1.3

Introduction

Specifications

Dual Channel TPA3116 CSR8635 4.0 BT Digital Audio Amplifier module 100w*2

Product Description:

Main Board: tpa3116 amplifier board

Function:

Using the digital power amplifier chip TPA3116D2 college D class operation, integrated CSR8635.4 version of the BT module.

Power amplifier chip with more than 90% of the power efficiency and low idle loss characteristics.

Output power:100W*2;BT 4.0,Low energy consumption, high transmission rate,compatible for smart phones and other electronic

with BT devices that support BT: HFP V1.6,HSP V 1.2, AVRCP V1.4, DI V1.3
