LED Digital Ammeter Voltmeter Voltage Current Meter 0.28/0.36/0.56 Inch

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Part Number:	LED Digital Ammeter Voltmeter Voltage Current Meter 0.28/0.36/0.56 Inch
Manufacturer:
Packing:
D/C:	new+
Description:	LED Digital Ammeter Voltmeter Voltage Current Meter 0.28/0.36/0.56 Inch
Quantity:	9999 Pieces
Delivery Time:	1-2 days
Data sheet:

If you need to get the correct price,Please send your RFQ to info@hfd-ic.com

Introduction

LED Digital Ammeter Voltmeter Voltage Current Meter 0.28/0.36/0.56 Inch best price and fast delivery.

Hengfengda is the distributor for LED Digital Ammeter Voltmeter Voltage Current Meter 0.28/0.36/0.56 Inch, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for LED Digital Ammeter Voltmeter Voltage Current Meter 0.28/0.36/0.56 Inch by email, we will give you a best price according your plan.
Our email: info@hfd-ic.com

Specifications

PRODUCT DESCRIPTION

LED Digital Voltmeter Ammeter 0.28/0.36/0.56 Inch Car Voltage Current Meter Volt Detector Tester Monitor Panel

Product Description:

Measuring range:DC 2.8V-30V
Working current:<30Ma
Input range:Dc 5-30V
Display:Three:0.28inch digital tube(red,blue,green)

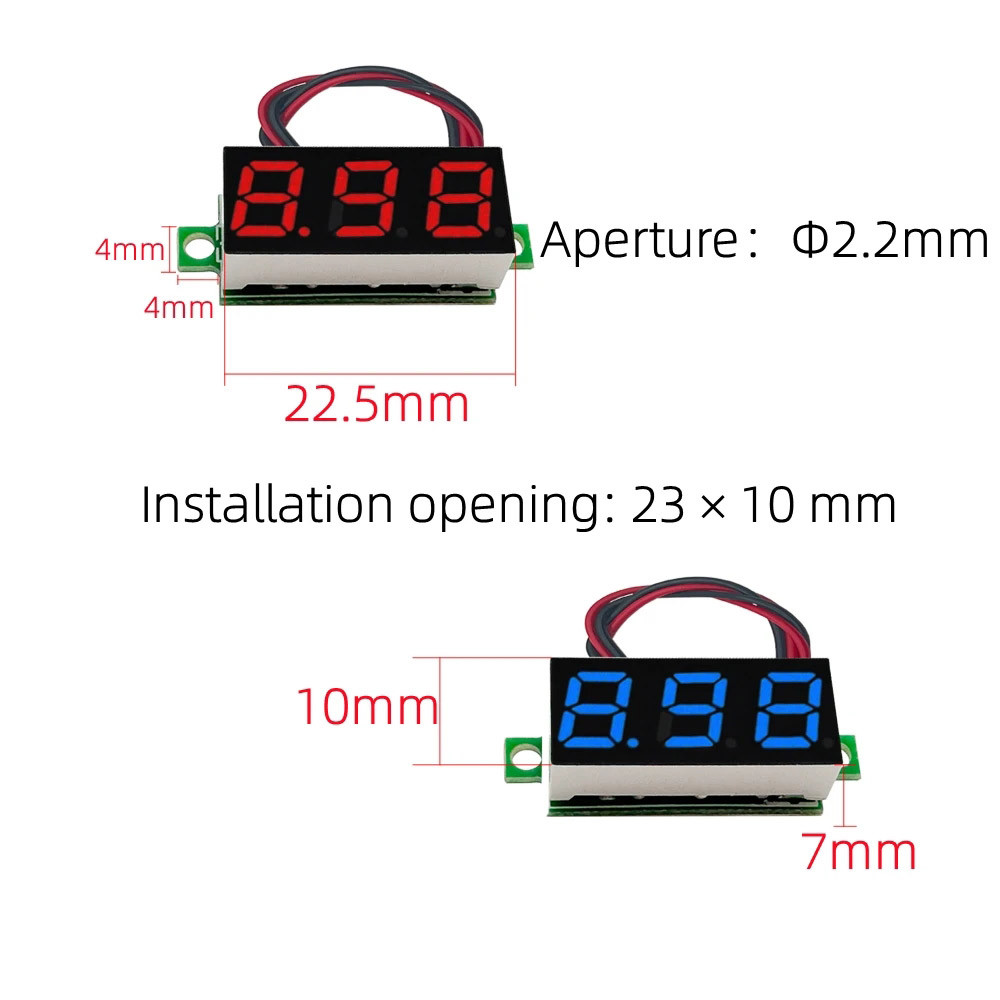

Dimensions:31mm*11.5mm*9mm(L*W*H)
Measurement accuracy:1%
Operation Temp:-10°-+80°
Color Red/Green/Yellow:
Voltage range:2.8V - 30V

Note:

when we measure the voltage less than 10V, our voltmeter display the figure is accurate to two decimal places;when we measure the voltage more than 10V,our voltmeter display the figure is accurate to one decimal places.

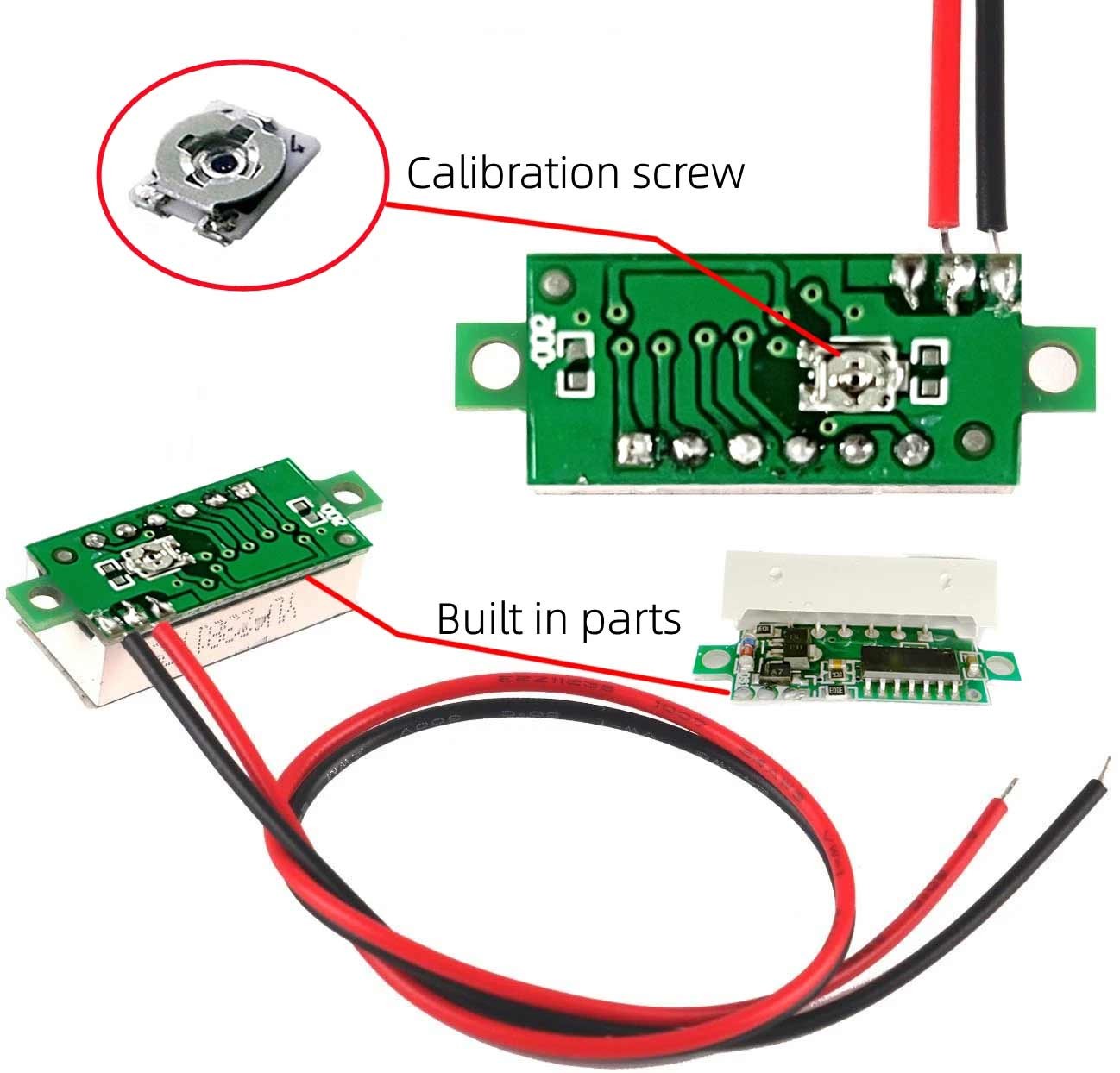

The voltmeter is easy to connect, the conventional two lines, red positive, black negative, there is reverse connection protection, and the connection does not burn.
