Dc Dc Converter

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Dc Dc Converter

Part Number:	Dc Dc Converter
Manufacturer:
Packing:	Module
D/C:	new+
Description:	5-40V 1.2-36V DC Buck Converter Step Down Module Low Ripple Power Supply Module
Quantity:	9999 Pieces
Delivery Time:	1-2 days
Data sheet:

If you need to get the correct price,Please send your RFQ to info@hfd-ic.com

Introduction

Dc Dc Converter best price and fast delivery.

Hengfengda is the distributor for Dc Dc Converter, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for Dc Dc Converter by email, we will give you a best price according your plan.
Our email: info@hfd-ic.com

Specifications

PRODUCT DESCRIPTION

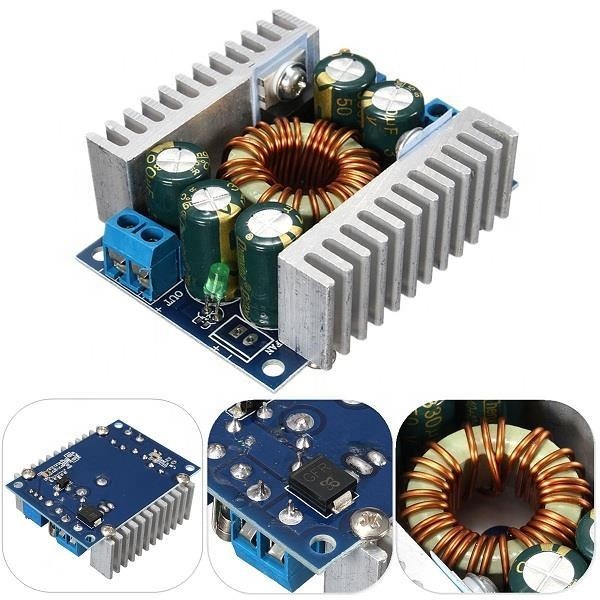

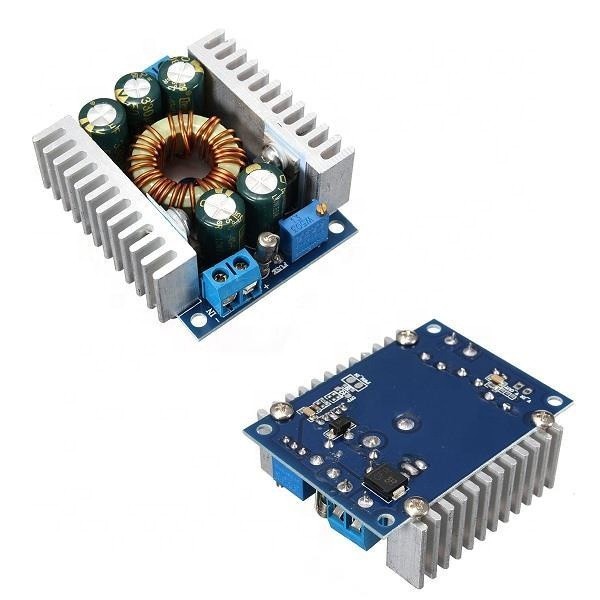

5-40V 1.2-36V DC Buck Converter Step Down Module Low Ripple Power Supply Module

Product Description:

Input voltage: 5-40V
Output voltage: 1.2-36V adjustable, 1.2-36V fixed output
Output Current: 12A MAX (rated 8A, peak 12A) 100W enhance heat dissipation of up to 200W,
Working temperature: -40 to + 85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 95%
Short circuit protection: Yes (limit current 12A)
Over temperature protection: (automatically shut off the output after over temperature)
Input Reverse Polarity Protection: None
Installation: Four 3mm screws (not included)
Connection: Terminals, solder, V-IN is the input, V-OUT is the output, with wire output module housing.
Module size: 50mm x 50mm x 18mm
Application: This module can be used in batteries, power transformers, DIY adjustable power supply, 24V car T of the power supply, automotive LED lights with power, industrial Buck equipment, 12V t- 3.3V, 12V - 5V, 24V - 5V , 24V -12V, etc.
