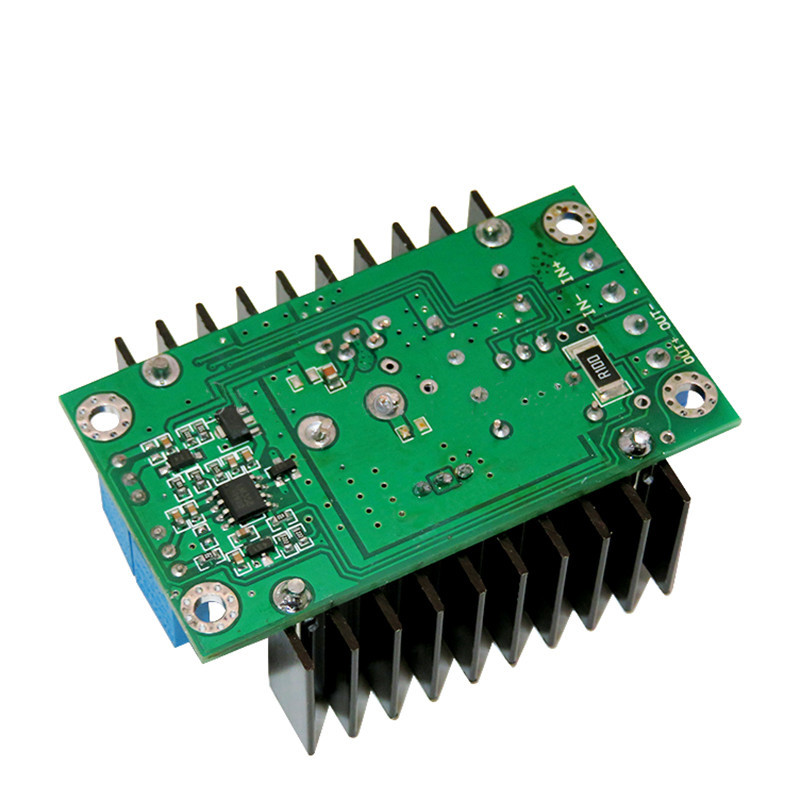

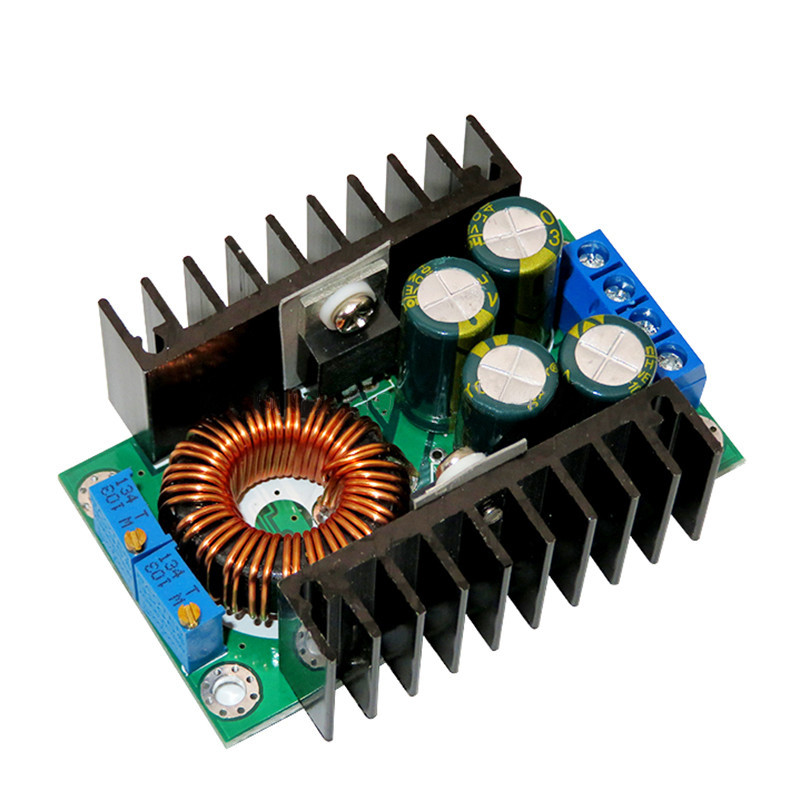

Power Module

• Module properties: Non-isolated step-down constant current, constant voltage module (CC CV) charging module
• Input voltage: DC 7-32V
• Output voltage: (1) DC 0.8-28V continuously adjustable. (2) Fixed output:Choose between 0.8v-28v
• Output Current: 8A (when power tubes temperature exceeds 65 degrees, please add cooling fan)
• Constant current range: 0.2-8A ( adjustable )
• Turn lamp current: Constant current value * ( 0.1 ) , turn the lamp current and constant value linkage,
• such as constant current value is 3A, turn the lamp current is set to a constant current is 0.1 times (0.1 * 3A = 0.3A).
• Lowest pressure: 1V
• Output Power: Maximum power is about 300W
• Conversion efficiency: Up to about 95%
• Operating frequency: 300KHZ
• Output ripple: 20M bandwidth
• Input 24V output 12V 5A ripple around 50mV (Excluding noise)
• Output short circuit protection : Yes, constant current
• Input reverse polarity protection: None
• Wiring: Terminal
• No-load current: Typical 20mA (24V switch 12V)
• Load regulation: ± 1% ( constant )
• Voltage regulation: ± 1%
• Dynamic response speed: 5% 200uS
• adjustment direction: clockwise (increase) , counterclockwise (decrease),
• the potentiometer(CV) closed to the input voltage is used to regulate voltage, the potentiometer(CC)
• closed to output voltage is used to regulate current (CC)
• Operating temperature: Industrial grade (-40 °C to +85 °C) ( please note the actual use of the power tube temperature , high temperature heat strengthened)
• Indicator: dual color indicator, charging indicator light is red, the green light means fully charged ( No load is green )
• Size(approx): 65 x 47 x 22mm (L x W x H)
• Precision of constant current and temperature: On the actual test, the module temperature from 25 degrees
• to 60 degrees, the constant current value change is less than 5% (5A constant current value)
• Precision of constant current and temperature: On the actual test, the module temperature from 25 degrees to 60 degrees, the constant current value change is less than 5% (5A constant current value)
• Output short circuit protection: Yes,Constant current (the current setting constant current value)
• Input reverse connect protection: NO
• Output prevent reverse flow: NO
• Wiring Method: amphenol connector

Features:

• Fixed turn lamp current is 0.1 times the current value

• ( Used to identify whether the battery is fully charged When charging).

• Made from a dedicated benchmark IC and high-precision current sensing resistor, proving a more stable

• constant current, (when 20°C to 100°C constant current 1A, temperature drift less than 1%).

• Particularly suitable for LED driver.

• High output current, the max output current can reach 8A.

• Four high frequency capacitance, can lower output ripple, enhance the work stabilization.

• Double heat sink design. MOS schottky diode independent heat sink,which heat dissipation is good,

• and wont affect each other.

• Using large size Sendust Core and double pure copper wiring, improve working efficiency, reduce fever.

• 3296 multiturn potentiometer,high accuracy voltage and current regulation, good stability.

• Double color lamp, working condition be clear at a glance

• Voltage and current are adjustable,wich effect is good.

Applications:

• High-power LED driver.
• Lithium battery(or lead accumulator) charge.
• Vehicle-mounted power supply.
• Low voltage system power supply.
• 6V, 12V, 14V, 24V battery charge.
• On-board laptop power supply.
• regulated power supply.
• Low voltage power supply system.
