SX1308

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
SX1308
Part Number: SX1308
Manufacturer:
Packing: Module
D/C: new+
Description: DC-DC SX1308 2A Step-UP voltage boost Adjustable Power Module Boost Converter
Quantity: 9999 Pieces
Delivery Time: 1-2 days
Data sheet:
If you need to get the correct price,Please send your RFQ to info@hfd-ic.com

Introduction

SX1308  best price and fast delivery.
Hengfengda is the distributor for SX1308, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for SX1308 by email, we will give you a best price according your plan.
Our email: info@hfd-ic.com

Specifications

PRODUCT DESCRIPTION
Description:
LC SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency. The output power can be adjust, maximum can arrive 28V and its interior integrate the lowest RDS internal resistance 100mΩ metal oxide semiconductor field effect transistor (mosfet), which can realize large current output of up to 2A. It widely used in 3G network products, digital products, mobile power supply,battery power supply, equipment, etc.
Features:
Oscillation frequency 1.2MHz
efficiency is as high as 95%
Circuit has short circuit protection, overheating protection function
10k to adjust potentiometer, adjust the output voltage
Parameters:
Maximum input voltage: DC 2-24V
Maximum output voltage: DC 2-28V
Switching frequency: 1.2MHz
Maximum current output: 2A

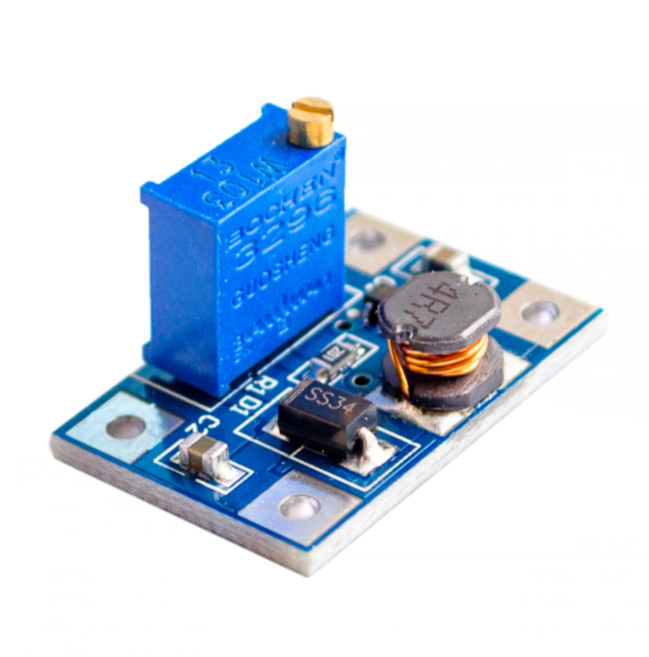

DC-DC SX1308 2A Step-UP voltage boost Adjustable Power Module Boost Converter 0

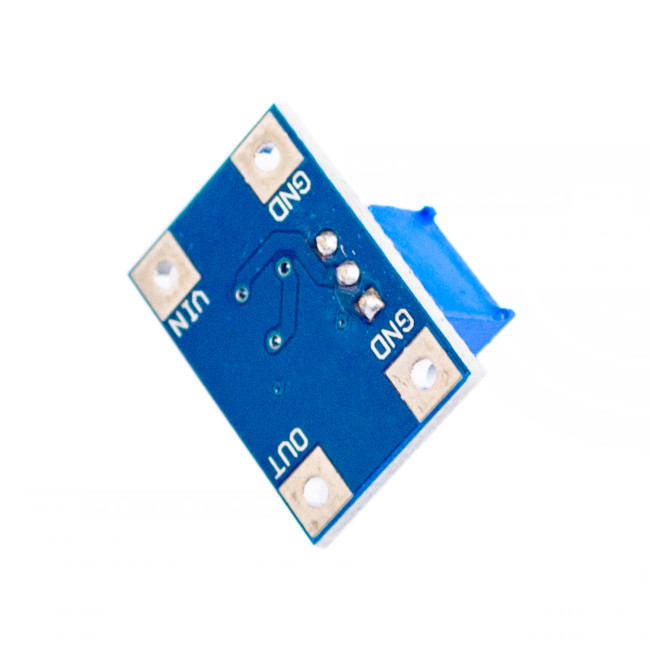

DC-DC SX1308 2A Step-UP voltage boost Adjustable Power Module Boost Converter 1

DC-DC SX1308 2A Step-UP voltage boost Adjustable Power Module Boost Converter 2
