Dc Dc Converter

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Dc Dc Converter

Part Number:	Dc Dc Converter
Manufacturer:
Packing:	Module
D/C:	new+
Description:	250W 10A LED Driver Dc Booster Module Non Isolated Power Supply
Quantity:	9999 Pieces
Delivery Time:	1-2 days
Data sheet:

If you need to get the correct price,Please send your RFQ to info@hfd-ic.com

Introduction

Dc Dc Converter best price and fast delivery.

Hengfengda is the distributor for Dc Dc Converter, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for Dc Dc Converter by email, we will give you a best price according your plan.
Our email: info@hfd-ic.com

Specifications

PRODUCT DESCRIPTION

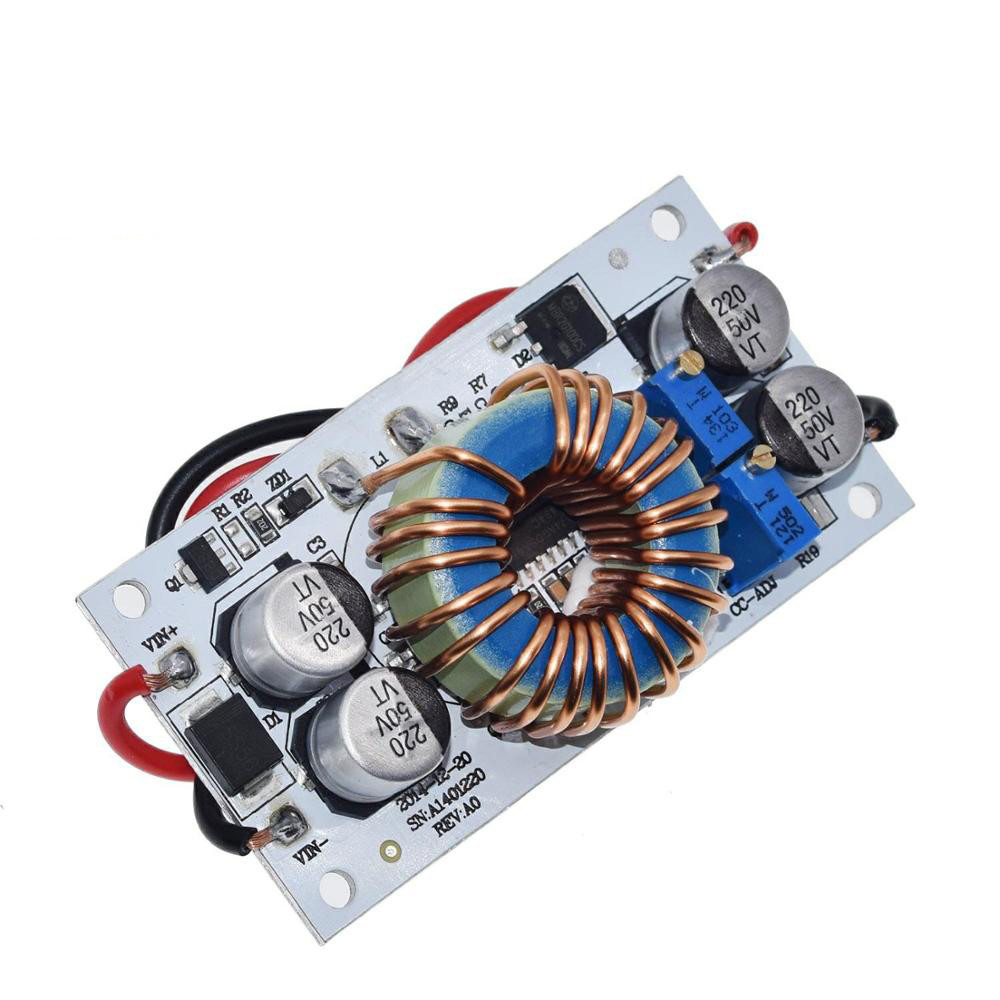

Boost Converter Constant Module 250W 10A LED Driver Non-isolated Power Supply Module

Product Description:

Input voltage: DC8.5V-48V
Input current: 10A (MAX) exceeds 8A please enhance heat dissipation
Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 10-50V continuously adjustable
Constant] range: 0.2-8A
Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 96%
Overcurrent protection: There
Input reverse polarity protection: Yes,
Installation: 4 3mm screw holes
Connection method: Connection Output

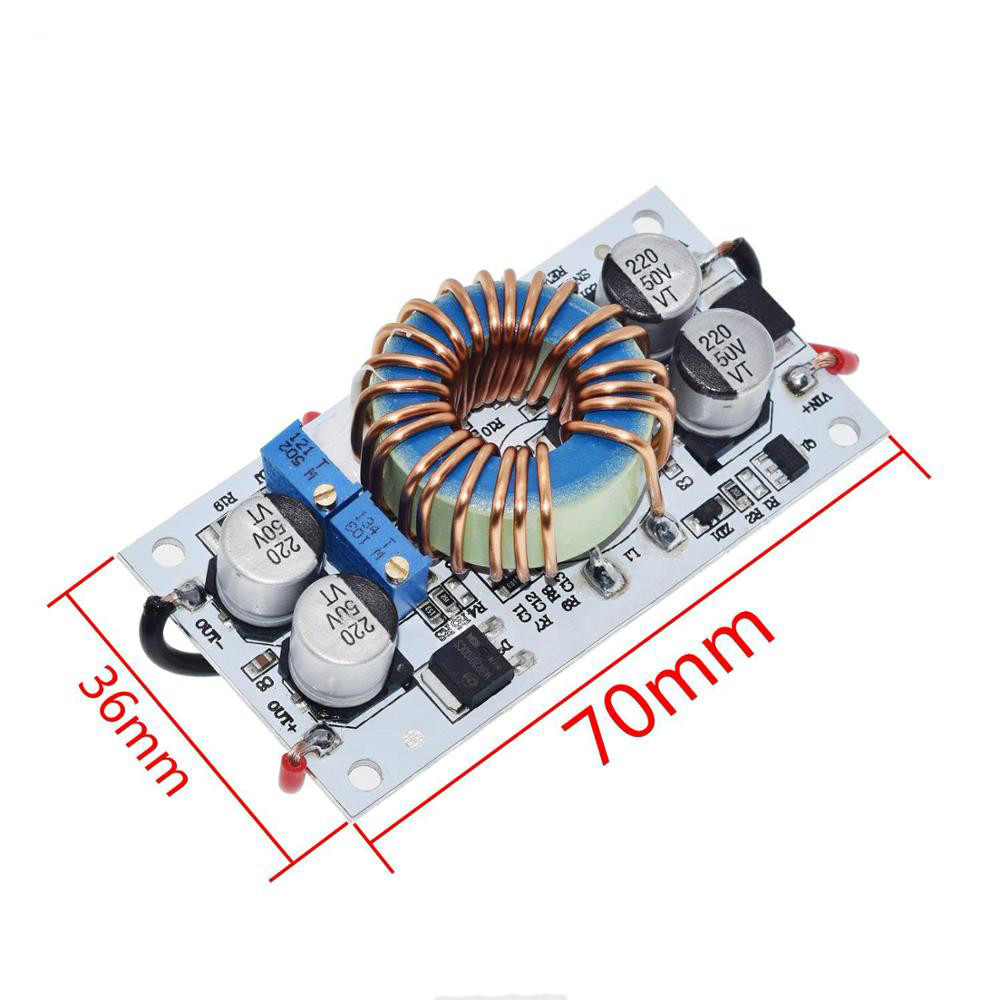

Module size: Length 70mm width 36mm height 13mm
Single module: 50 g

Applications:

DIY a power supply, 12V can input and output can 12-50V adjustable.
the power supply for your electronic device, according to your system can set the output voltage value.
as the car power supply for your laptop, PDA or a variety of digital
DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack, so you can go where light where books.
solar panel regulator.
to the battery, rechargeable lithium batteries.
driving high-power LED lights.

Introduction

Specifications

Boost Converter Constant Module 250W 10A LED Driver Non-isolated Power Supply Module

Product Description:

Applications:

DIY a power supply, 12V can input and output can 12-50V adjustable.

the power supply for your electronic device, according to your system can set the output voltage value.

as the car power supply for your laptop, PDA or a variety of digital

DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack, so you can go where light where books.

solar panel regulator.

to the battery, rechargeable lithium batteries.

driving high-power LED lights.
