XL4016E1

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

XL4016E1

Part Number:	XL4016E1
Manufacturer:
Packing:	Module
D/C:	new+
Description:	4-38V Dc Step Down Power Supply XL4016E1 module Voltage Regulator
Quantity:	9999 Pieces
Delivery Time:	1-2 days
Data sheet:

If you need to get the correct price,Please send your RFQ to info@hfd-ic.com

Introduction

XL4016E1 best price and fast delivery.

Hengfengda is the distributor for XL4016E1, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for XL4016E1 by email, we will give you a best price according your plan.
Our email: info@hfd-ic.com

Specifications

PRODUCT DESCRIPTION

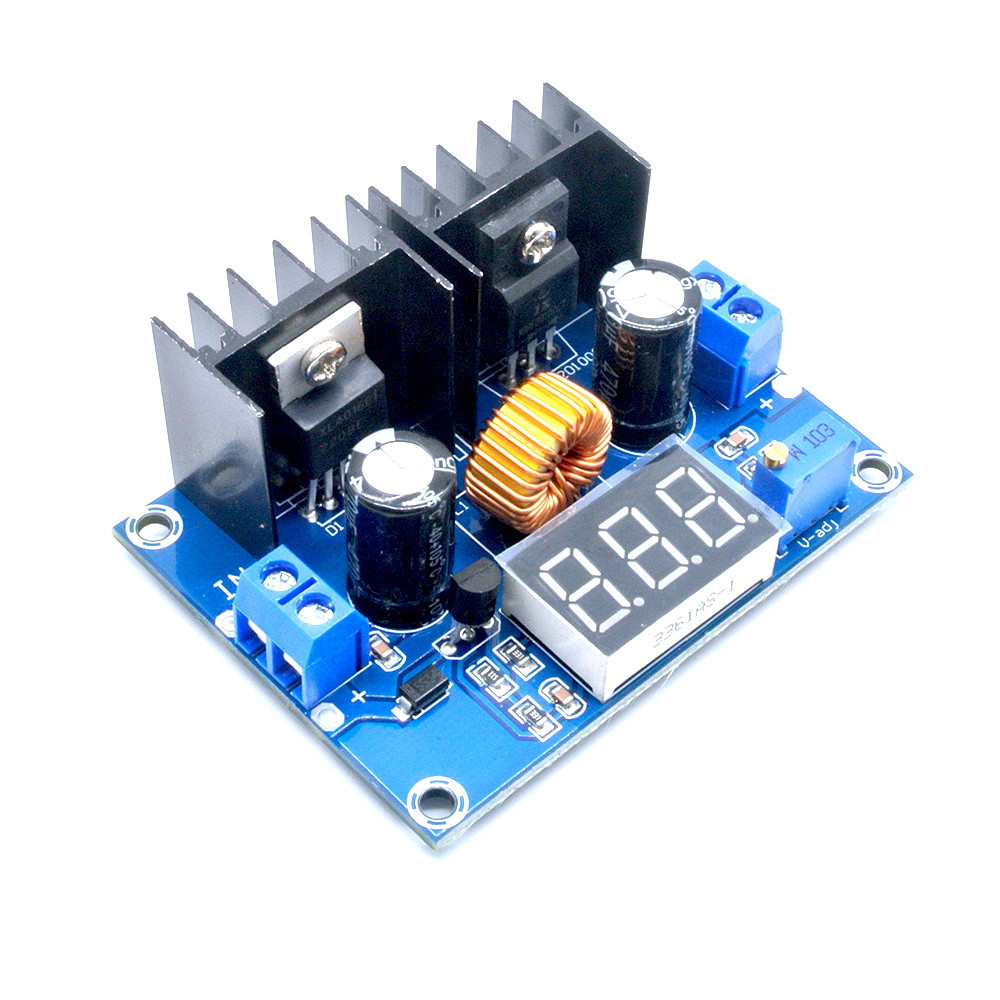

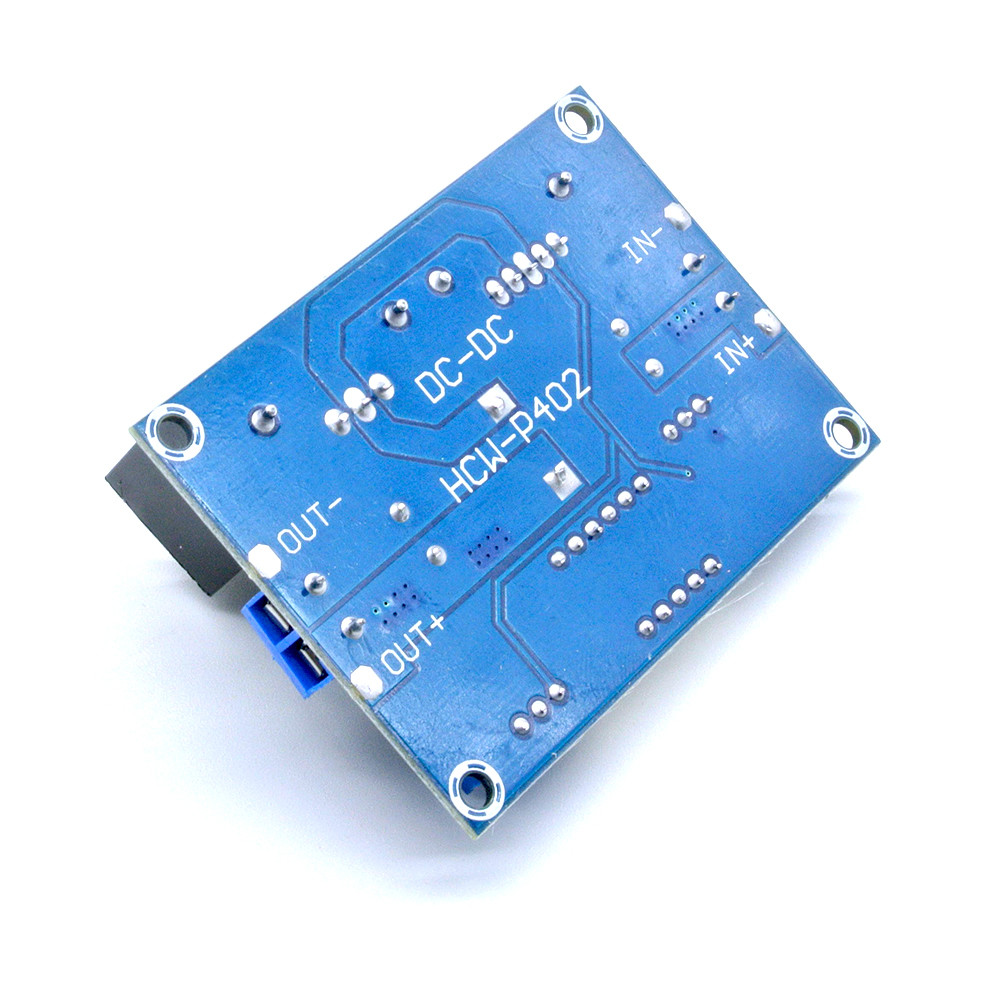

DC Voltage Regulator XL4016E1 DC Step Down Power Supply Module

Product Description:

The input voltage of 4-40V,the output voltage range of 1.25-36V.
The digital display is the output voltage.
The potentiometer button:right to adjust the output voltage has increased;left-hand side, the output voltage is reduced;
Afterre-regulating the stress-related load and damage to the load.

Specification:

Input voltage:DC 4-38V
Output voltage:DC1.25-36V
Output current ((MAX):8A (recommended for long-term work within 5A)
Switching frequency:180KHz
Efficiency:95% (MAX)
Power (maximum):250W (MAX)
Working temperature:(-45℃)-(+85℃)
Display mode:0.36 inch 3-digit red digital tube
Weight:70g
Color:As picture

Introduction

Specifications

DC Voltage Regulator XL4016E1 DC Step Down Power Supply Module

Product Description:

Specification:

Input voltage:DC 4-38V

Output voltage:DC1.25-36V

Output current ((MAX):8A (recommended for long-term work within 5A)

Switching frequency:180KHz

Efficiency:95% (MAX)

Power (maximum):250W (MAX)

Working temperature:(-45℃)-(+85℃)

Display mode:0.36 inch 3-digit red digital tube

Weight:70g

Color:As picture
