CA-128

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

CA-128

Part Number:	CA-128
Manufacturer:
Packing:	Module
D/C:	new+
Description:	24V Power Supply Module LCD TV Power Supply Motherboard
Quantity:	9999 Pieces
Delivery Time:	1-2 days
Data sheet:

If you need to get the correct price,Please send your RFQ to info@hfd-ic.com

Introduction

CA-128 best price and fast delivery.

Hengfengda is the distributor for CA-128, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for CA-128 by email, we will give you a best price according your plan.
Our email: info@hfd-ic.com

Specifications

PRODUCT DESCRIPTION

CA-128 LCD TV motherboard repair universal power supply motherboard repair test 24V power supply module

Product Description:

Output: 12V/24V 5-3.3V
Function: TV motherboard repair

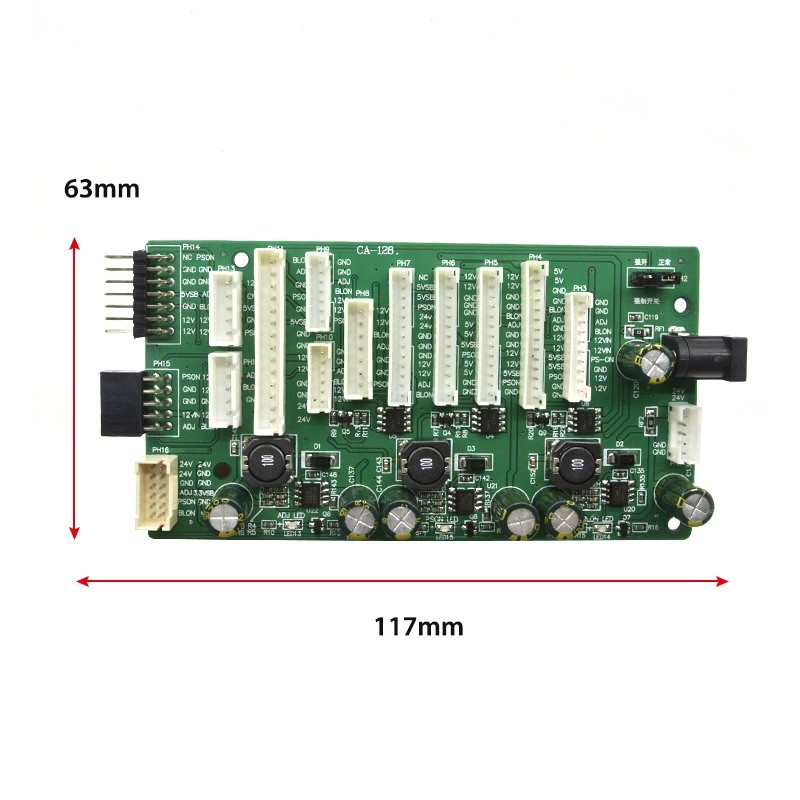

Size: 117mm*63mm
Application:LCD TV
Packaging Type:Bubble Bag

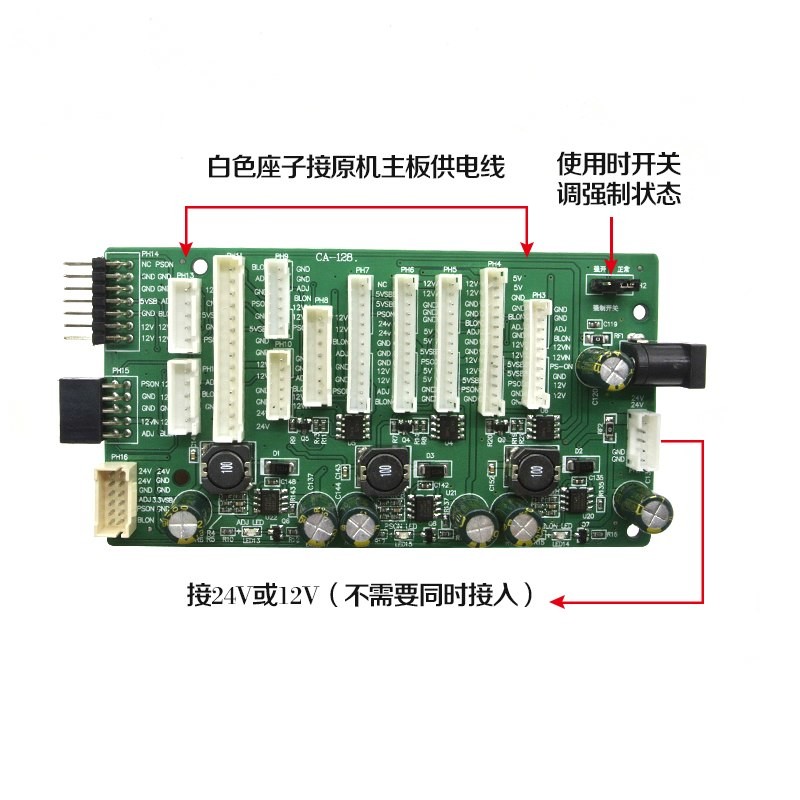

Voltage supply description:

When the 24V power supply is used, 24/ 12 /5V is the controlled voltage, and the others are the voltages available when the power ison;
When the mandatory jumper cap is placed in the mandatory position,all voltages are available;
When 12V power supply,12/5Vis controlled, 24Vhas no output and other power has voltage.

Note:

Before use,make sure that the interface on the tooling is consistent with the original power board socket
and then plug it into the tooling If the interface is not the same as the original power board
the corresponding voltage and control pin jumpers can be used to supply power to the motherboard 12V and 24V can not be connected at the same time (generally connected to12V3A internal positive and external negative power supply,it is available in the power store)
