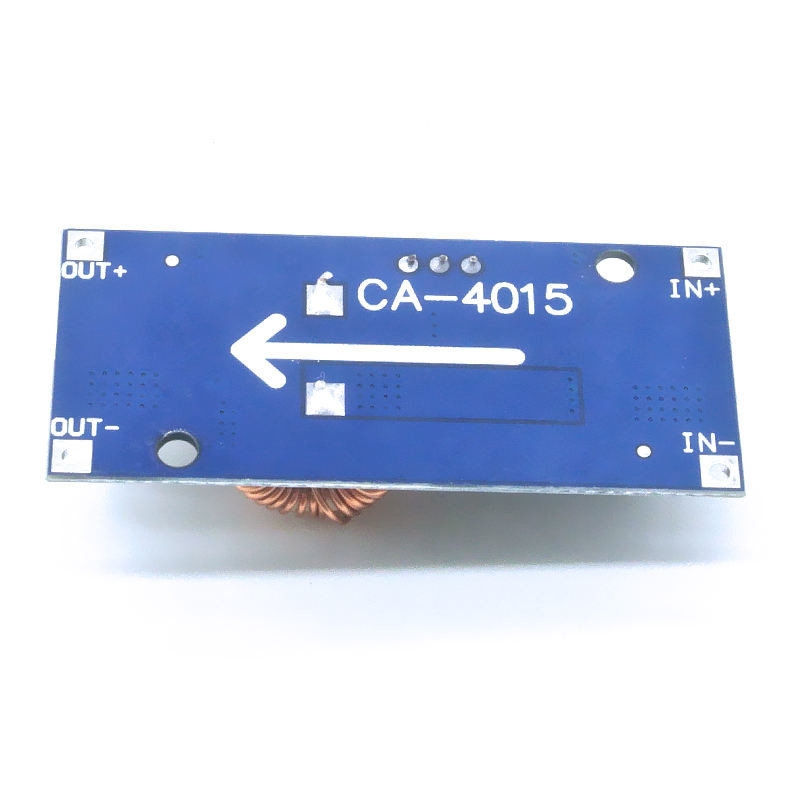

CA-4015

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

CA-4015

Part Number:	CA-4015
Manufacturer:
Packing:	Module
D/C:	new+
Description:	5A DC 4~38V Buck Converter Module Adjustable Step Down High Power High Efficiency
Quantity:	9999 Pieces
Delivery Time:	1-2 days
Data sheet:

If you need to get the correct price,Please send your RFQ to info@hfd-ic.com

Introduction

CA-4015 best price and fast delivery.

Hengfengda is the distributor for CA-4015, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for CA-4015 by email, we will give you a best price according your plan.
Our email: info@hfd-ic.com

Specifications

PRODUCT DESCRIPTION

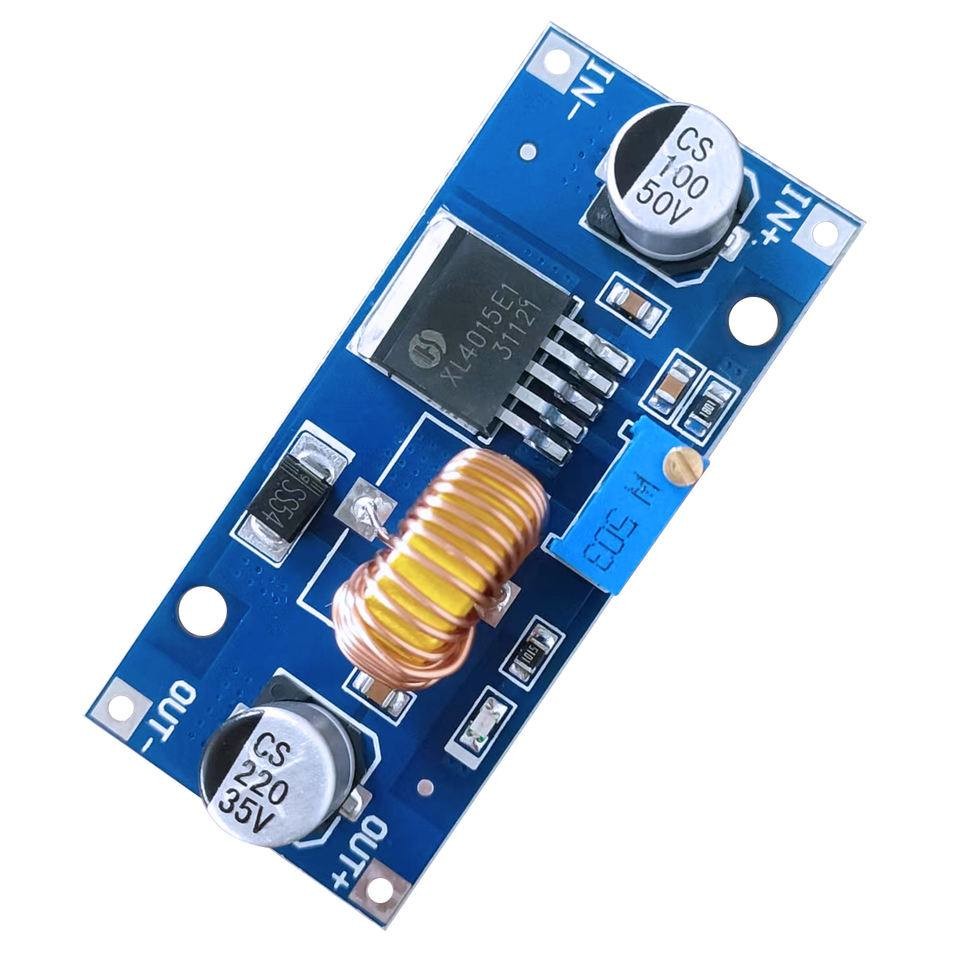

CA 4015 5A DC 4~38V DC Buck Converter Module Adjustable Step down Power Supply Module

Product Description:

The vast majority of 2596 on the market can be promoted to 3.0A current, in fact, it can be 1.8A, the total power is about 15W, in many cases the power can not meet the requirements; The step-down module can easily reach 4.5A, power up to 75W, has a very high cost performance!

Module highlights: 5A high power high efficiency low ripple strip power indicator light free heat sink!

performance and characteristics:

Module nature: Non-isolated step-down module (BUCK)
Input voltage: 4-38V (Input please try not to exceed 38V)
Output voltage: 1.25-36V continuously adjustable
Output current: 0-5A
Output power: 75W
Operating temperature: -40~+85 degrees
Operating frequency: 180KHz
Conversion efficiency: 96%
Load adjustment rate: S (I) ≤ 0.8% (input 24V, output 12V, measured when the load changes from 1 to 4.5A) Voltage adjustment rate: S (u) ≤ 0.8% (measured when the voltage changes from 18 to 32V when the output is 12V and 4A)
Power indicator: Yes Short circuit protection: have (limited current 8A) Overtemperature protection: there is (automatically shut off output after overtemperature) Input backconnection protection: none (if necessary, please insert high current diode in the input string)
Installation: 2 3mm screws
Connection mode: Welding, with V-IN as input and V-OUT as output
output Module size: 54mm long, 23mm wide and 15mm high

5A DC 4~38V Buck Converter Module Adjustable Step Down High Power High Efficiency 0

Scope of application:

This module can be used in the input voltage is higher than the output voltage of the step-down field, such as battery, power transformer, DIY adjustable voltage regulator power supply, 24V vehicle pen meter this power supply, industrial equipment step-down, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, 36V to 24V, etc.
