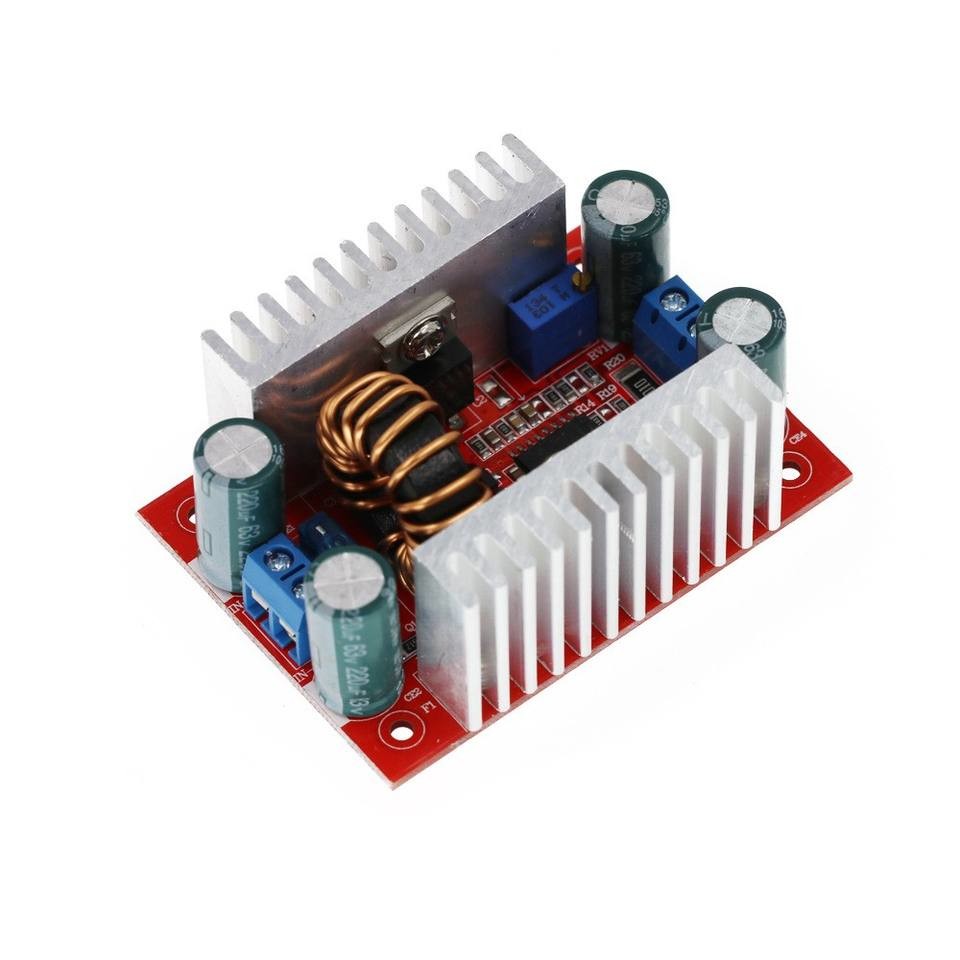

Dc Dc Converter, Voltage Regulator

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Part Number:	Dc Dc Converter, Voltage Regulator
Manufacturer:
Packing:	Module
D/C:	new+
Description:	DC 400W 15A Power Supply Module Step Up Boost Module 8.5-50V To 10-60V
Quantity:	9999 Pieces
Delivery Time:	1-2 days
Data sheet:

If you need to get the correct price,Please send your RFQ to info@hfd-ic.com

Introduction

Dc Dc Converter, Voltage Regulator best price and fast delivery.

Hengfengda is the distributor for Dc Dc Converter, Voltage Regulator, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for Dc Dc Converter, Voltage Regulator by email, we will give you a best price according your plan.
Our email: info@hfd-ic.com

Specifications

PRODUCT DESCRIPTION

DC 400W 15A Step-up Boost module 8.5-50V to 10-60V Voltage Charger power supply module

Product Description:

module name : 400W boost constant current module
module nature : non isolated boost module ( boost )
Input voltage : dc8 . 5v-50v
Input current : 15A ( max ) over 8a , please strengthen heat dissipation
Static working current : 10MA ( when 12V rises to 20v , the higher the output voltageis , the higher the static current will be)
Output voltage : 10-60v continuously adjustable
Output current : if 12a Max exceeds 7a , please strengthen heat dissipation ( it is relatedto input and output voltage difference , the larger the voltage difference , the smaller theoutput current )
Constant current range : 0. 2-12a
Output power :=input voltage * 10a 10 . For example : Input 12V * 5A= 60W , input 24V * 5A=120w
Input 36V*5A= 180W , input 48V * 5A=240W
Working temperature : -40～＋85℃ ( please strengthen heat dissipation when the ambient temperature is too high)
Working frequency : 150KHz
Conversion efficiency : up to 96 % ( efficiency is related to input and output voltage , current and voltage difference )
Over current protection : Yes ( if the input exceeds 15a , the output voltage will be automatically reduced , and there is a certain range of error .)
Input reverse connection protection : none ( if more reverse connection current is neede . please connect diode in series with input )
Installation method : four 2 . 5mm screw holes

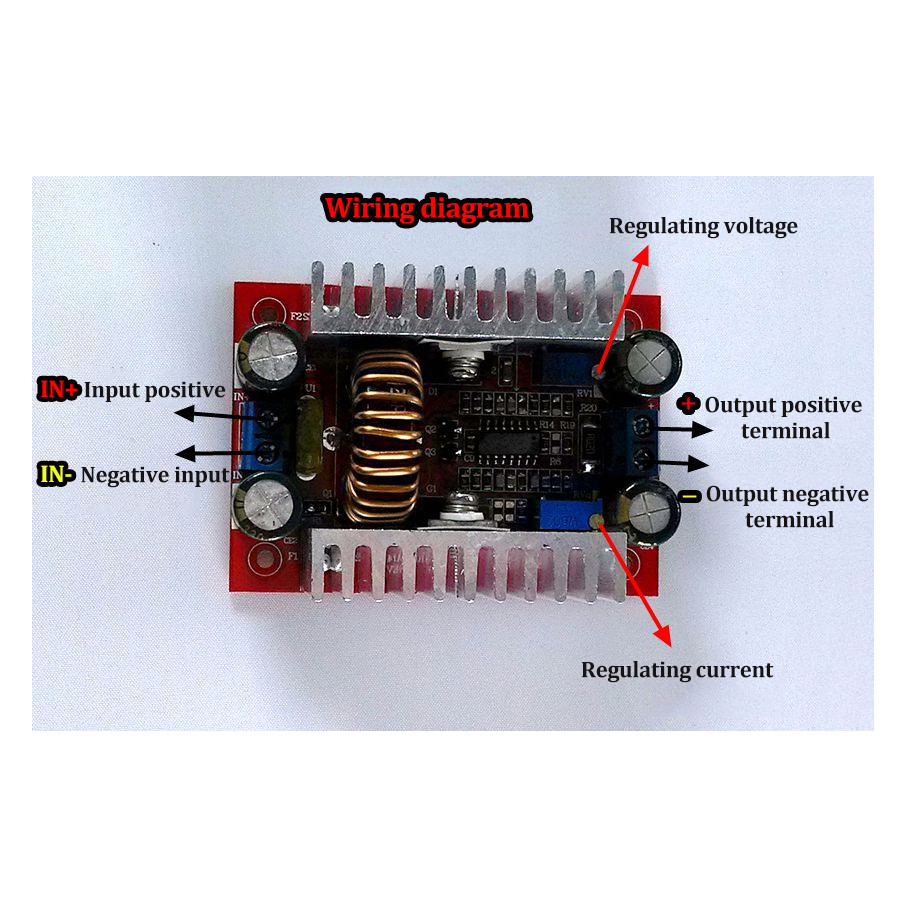

Wiring mode : wiring output
Module size : length 67mm * width 48mm * height 28mm
Module weight : 60g
