CA-0518

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
CA-0518
Part Number: CA-0518
Manufacturer:
Packing: Module
D/C: new+
Description: CA-0518 LED Universal Backlight Constant Current Board 19-60 Inch 220V 110V AC
Quantity: 9999 Pieces
Delivery Time: 1-2 days
Data sheet:
If you need to get the correct price,Please send your RFQ to info@hfd-ic.com

Introduction

CA-0518  best price and fast delivery.
Hengfengda is the distributor for CA-0518, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for CA-0518 by email, we will give you a best price according your plan.
Our email: info@hfd-ic.com

Specifications

PRODUCT DESCRIPTION

CA-0518 19-60 Inch LED Universal Backlight Constant Current Board 220V Or 110V AC Input 300-240V DC Applicable



Product Description:



  • product name: led backligth constant current board
  • prodcut model: CA-0518
  • input voltage: 300-450V DC
  • output voltage: 36-180V DC
  • power: 45W
  • apply: universal 19-60inch
  • product size: 115*50mm
  • product weigth: 355g



Interface specification

  • ON Connects to the signal control pin(Voltage range about 3.3V)
  • ADJ Connects to the brightness control foot(Voltage range 0-3.3V)
  • ADJ, brightness adjustment, if the default value is 0V, the output voltage to the light bar is the highest; When the voltage of the ADJ pin increases, the voltage output to the light bar decreases, and the light bar becomes dimmer. ADJ is to use voltage to control the output voltage to achieve the brightness control bar. All constant flow plate and high pressure plate ADJ. are the same
  • GND Connects (cold) ground

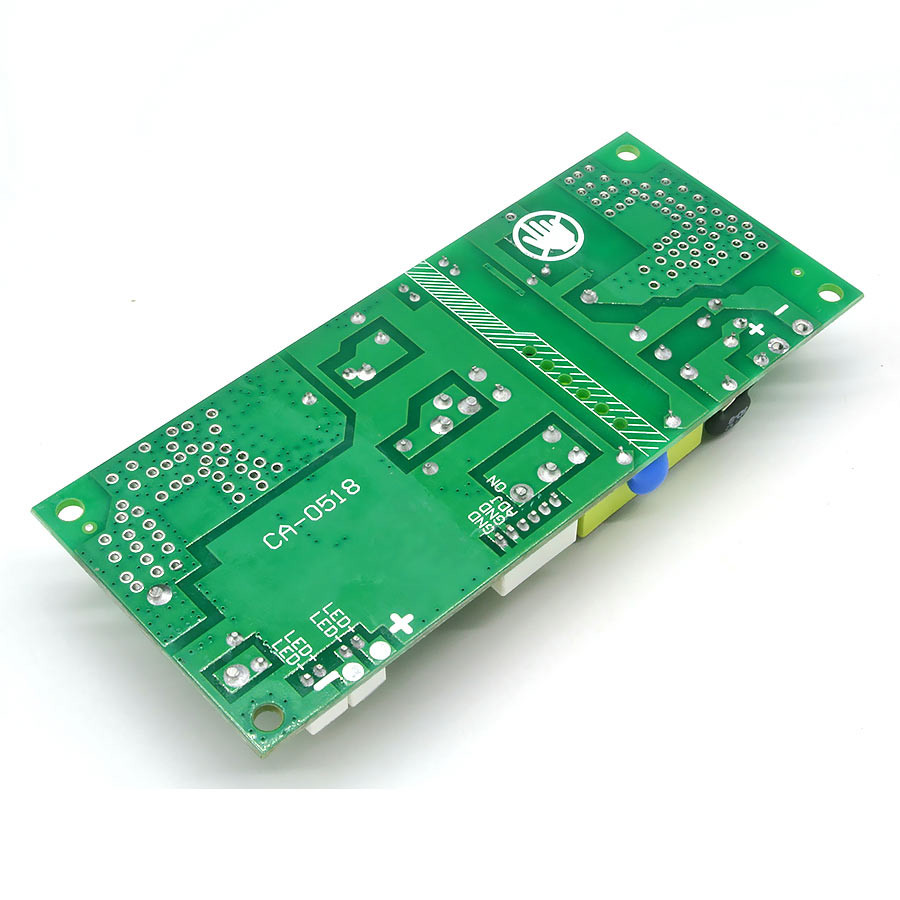

CA-0518 LED Universal Backlight Constant Current Board 19-60 Inch 220V 110V AC 0



CA-0518 LED Universal Backlight Constant Current Board 19-60 Inch 220V 110V AC 1

CA-0518 LED Universal Backlight Constant Current Board 19-60 Inch 220V 110V AC 2
